T Pins

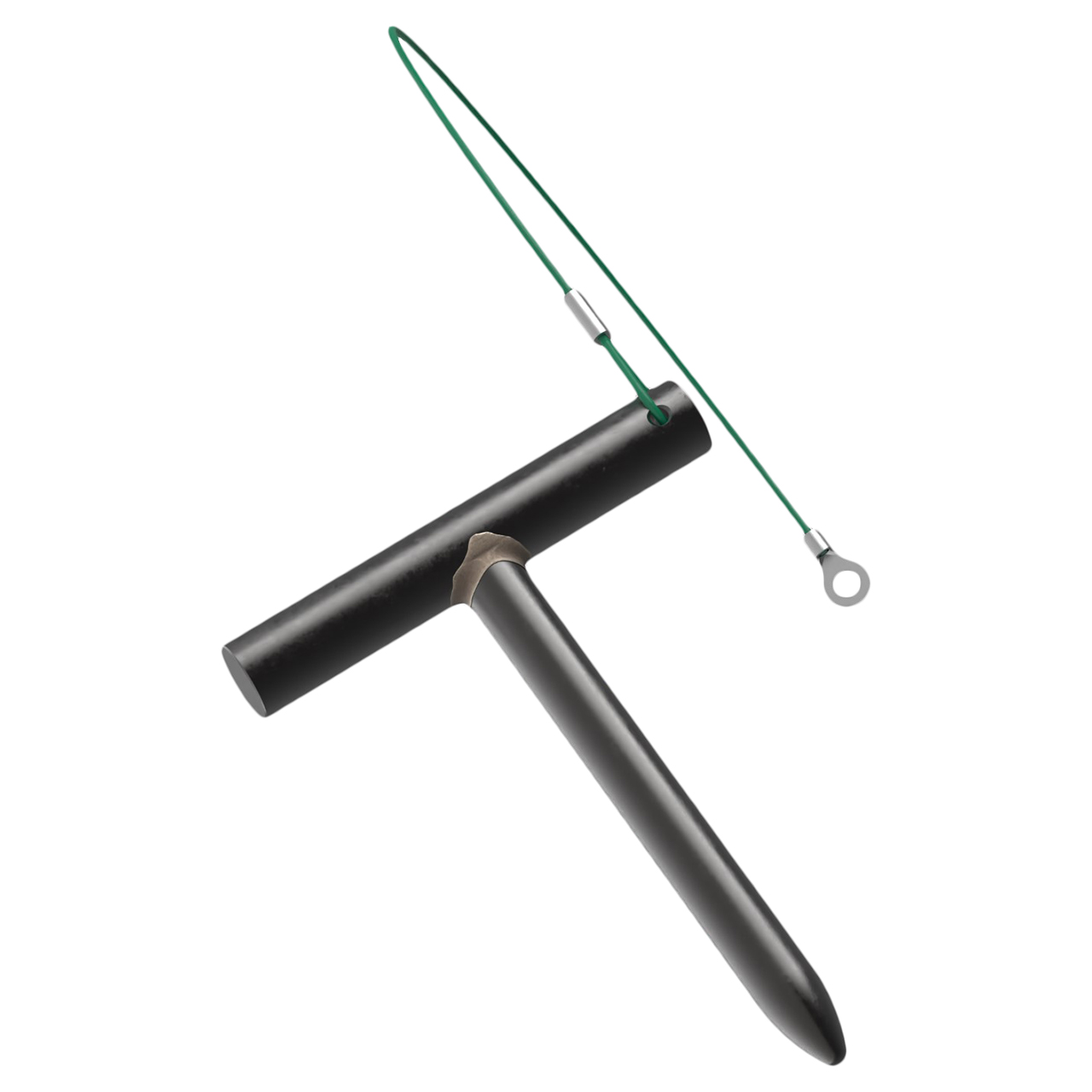

are removable locating pins, precision ground for accurately aligning holes. The pin body is inset into a solid handle and silver soldered to create a sturdy assembly. The handle end has a small hole for attaching an optional cable. Made in USA.
Application Information
T Pins can be used for accurately aligning two plates.
Optional Cable
To order T Pins with a standard cable assembly attached, add "-C" to the part number, (#2 cable size, 10-12" long, with a terminal at the free end for a #10 or M5 attachment screw).
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1215 Steel | Carburized-hardened | Black Oxide |
| Handle | 1215 Steel | - | Black Oxide |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) |
| 3/16" | 0.1875" | 3" | 2-1/2" | 5/16" | 1/4" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
3/16"
Pin Shape:
T Pin
Length (Inch):
3"
Length (Decimal Inch):
3.0000"
Length (mm):
76.20mm
Diameter (Decimal Inch):
0.1875"
Diameter (mm):
4.77mm
