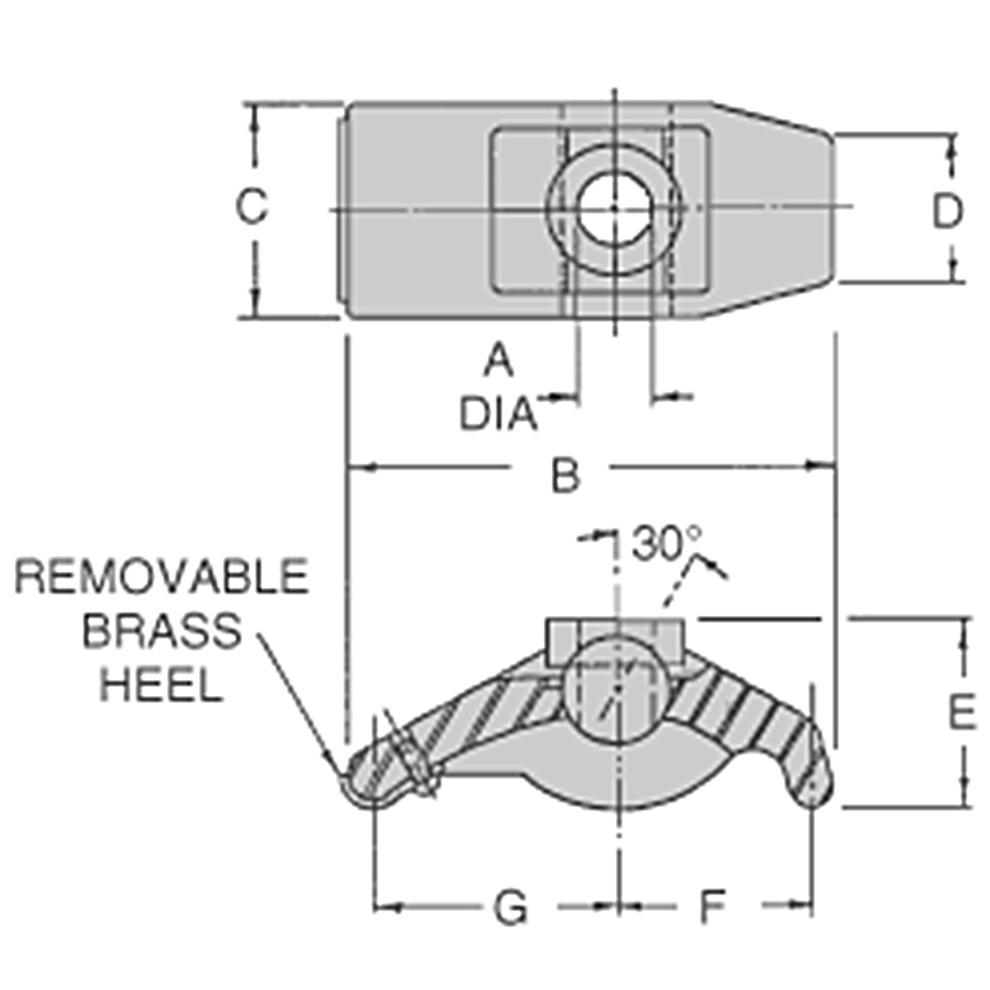

Rugged forged steel pivot clamp. Provides instant height adjustment without blocks or shims. All-in-one construction allows quick setup and eliminates lost clamp pieces. Turn clamp 90° in either direction for loading clearance. Removable brass heel protects tooling plate. The Forged Adjustable Clamps are for Heavy System MF50 (5/8-11 stud size).
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Forged 1045 Steel | - | Black Oxide | ✔ | ✔ |
| Pivot | Mild Steel | - | Black Oxide | ✔ | ✔ |
| Removable Heel Pad | Brass | - | - | ✔ | ✔ |
| Stud Size | Clamping Height | A (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) |
| 5/8-11 | O to 3 | 11/16" | 5-1/2" | 1-7/8" | 1-3/8" | 1-7/8" | 2" | 3-1/4" |
