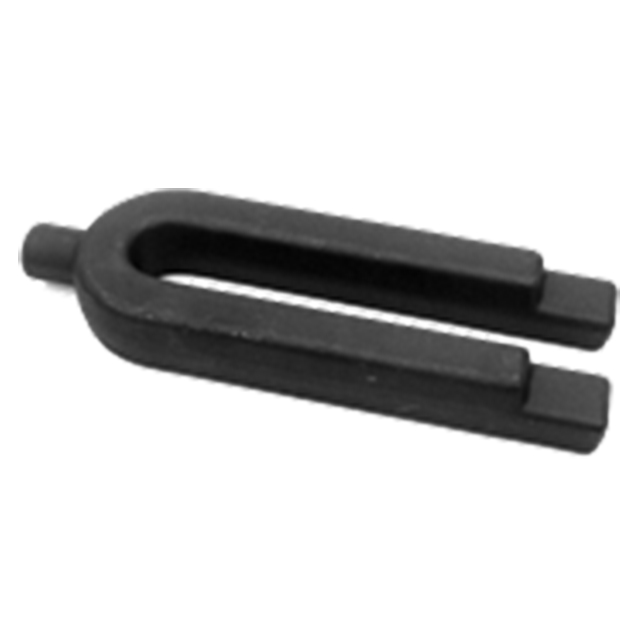

Open U shape allows totally removing the clamp strap for loading and unloading. The open U end has two tips that are stepped to provide repeatable location. The other end is a cylindrical pin that minimizes contact area and is useful for clamping in horizontal holes. Made in USA.
Open U end allows totally removing clamp strap when unclamped. Clamp tips are stepped to provide repeatable location.
Cylindrical pin end minimizes contact area and is useful for clamping in horizontal holes.
| Material | Heat Treat | Finish | DFARS | RoHS |
| Forged Steel, 70,000 psi yield strength | - | Black Oxide | Yes | Yes |
| Stud Size | A | B | C | D | E | F | G | H |
| 5/8-11" or M16 | 5-7/16 | 2-1/4 | 7/8 | 11/16 | 3/4 | 5/16 | 3/4 | 3/4 |
