CL-101-TC Series-250lbs.
CL-101-TC
Open Arm, Flanged Base

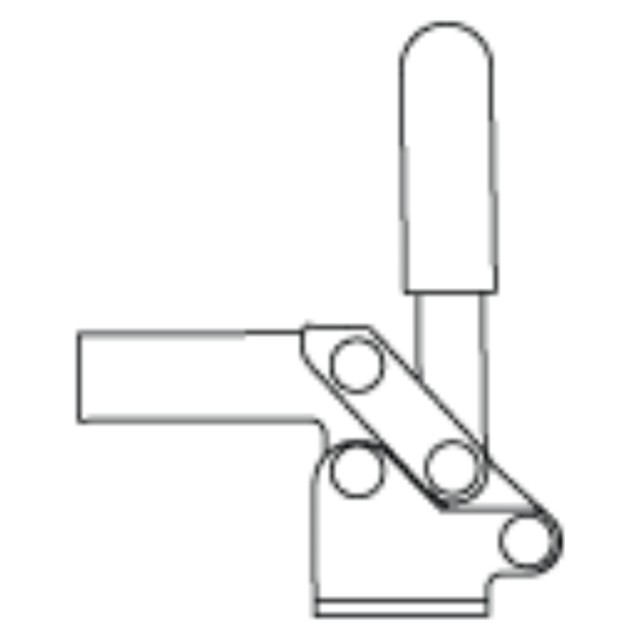

Simple, easy-opening toggle clamps with extra arm height. Arm opens 83° while handle moves 83° – ideal when wide opening is not desirable. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. 250 lbs. holding capacity.Clamping Action
Clamped Position
Open Position

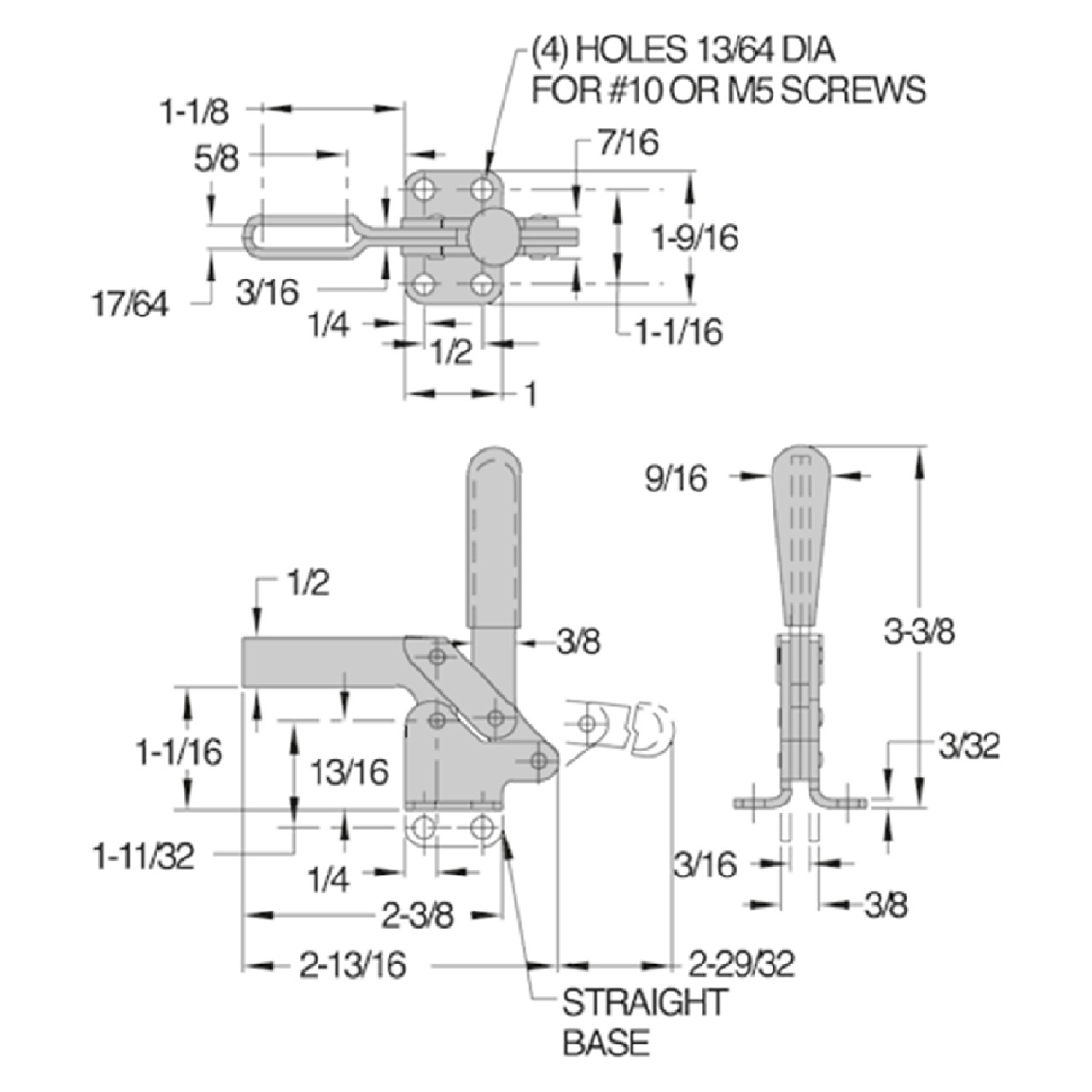

Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008,1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Open Arm, Flanged Base | 250lbs. | 0.3lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Holding Capacity:
250 lbs.
Ships:
From Manufacturer
