Product Information

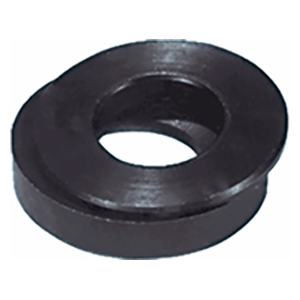

Spherical Washers, also known as Equalizing Washers, are a Heavy-duty two-piece washer that compensates whenever a stud and clamping surface are not exactly perpendicular. The top washer has a convex spherical radius, while the bottom washer has a matching concave spherical radius. Available in steel for stud sizes 1/4 to 1-1/2" (M6 to M36 in metric), and in stainless steel for stud sizes #10 to 3/4" (M5 to M18 in metric). Made in USA.

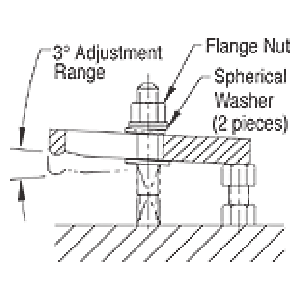

Application Information
Material
| Steel | |||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS | |
| 1215 Steel | Carburized-Hardened | Black Oxide | ✔ | ✔ | |
| Stainless Steel | |||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS | |
| 300-Series Stainless Steel | - | Passivated | ✔ | ✔ | |

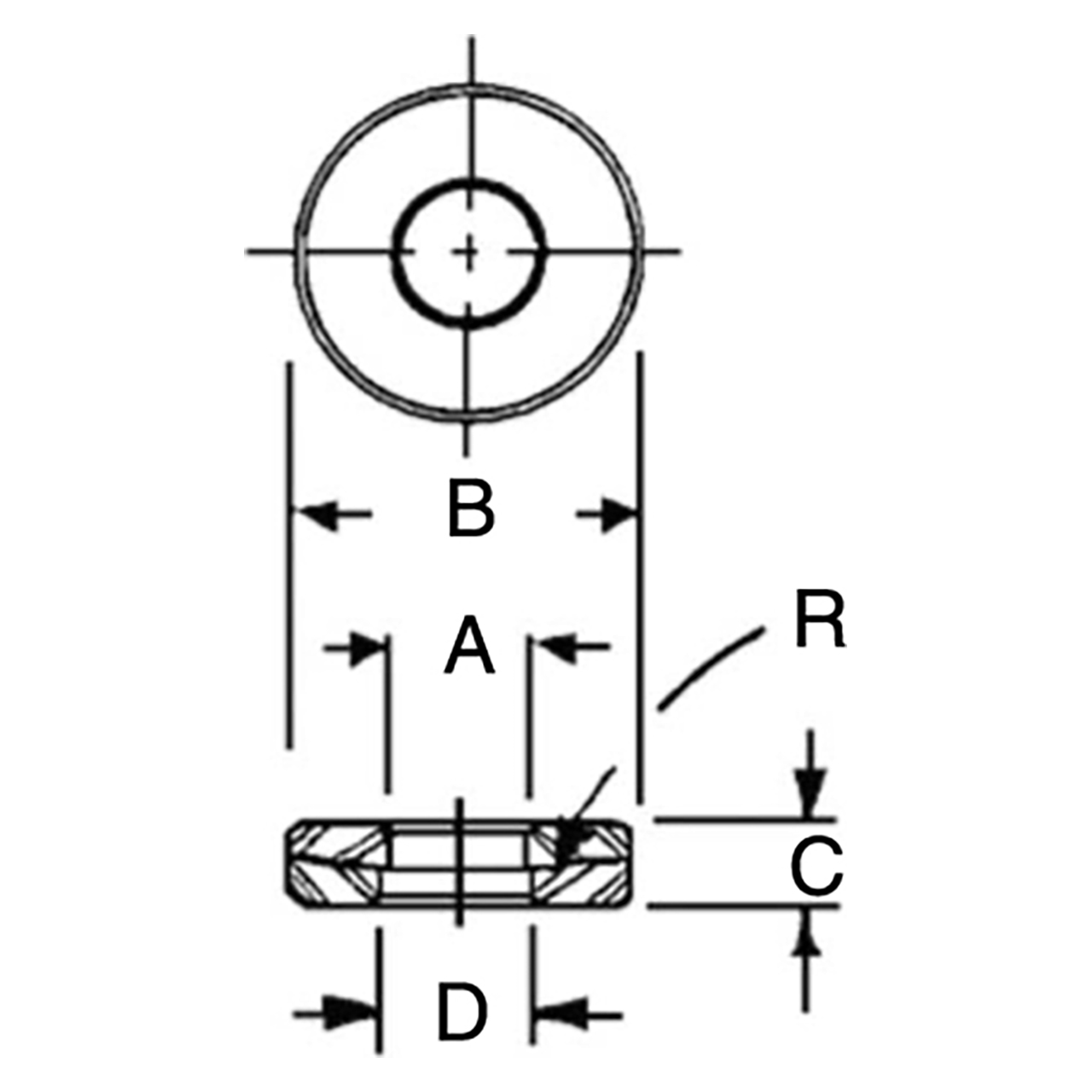

Parts Specification
| Part Number | BOLT SIZE | A DIA | B DIA | C | D DIA | R |
| CL-11-SW-PACKOF2 | 5/16 or M8 | 11/32 | 3/4 | 1/4 | 3/8 | 1 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Carr Lane
Material:
Steel
Finish/Coating:
Black Oxide
