CL-110-PA Series-500lbs.

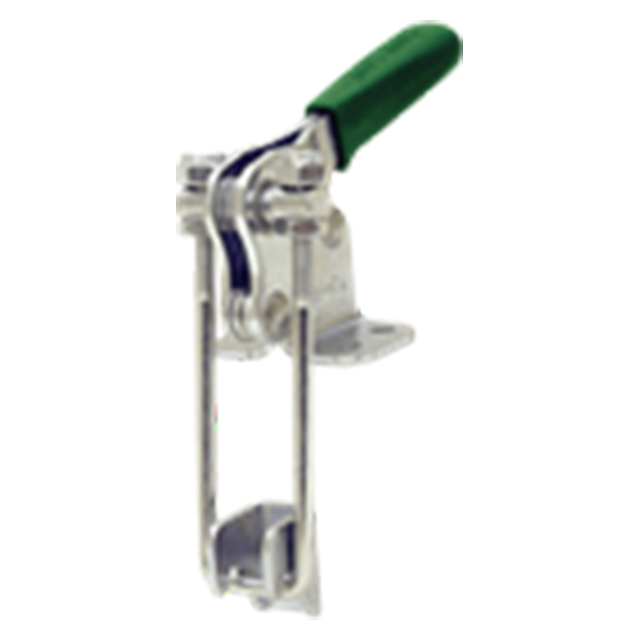

CL-110-PA
Miniature latch clamp with high holding capacity. Pulling direction is perpendicular to the base. Threaded U bolt for adjustability. Large, comfortable handle grip. 1-1/2" drawing movement. Threaded U bolt allows a 7/16" adjustment range.
Design Considerations
To achieve full holding capacity, U-bolt-type latch clamps must be used together with the furnished latch plate, or with a suitable custom latch plate of equal width and centerline height.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 300-Series Stainless | - | - | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) | Replacement U Bolt | Replacement Latch Plate |
| Flanged Base | 500lbs. | 0.3lbs. | CL-110-PA-S-UBOLT | CL-110-PA-S-L |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Holding Capacity:
500 lbs.
Ships:
From Manufacturer
