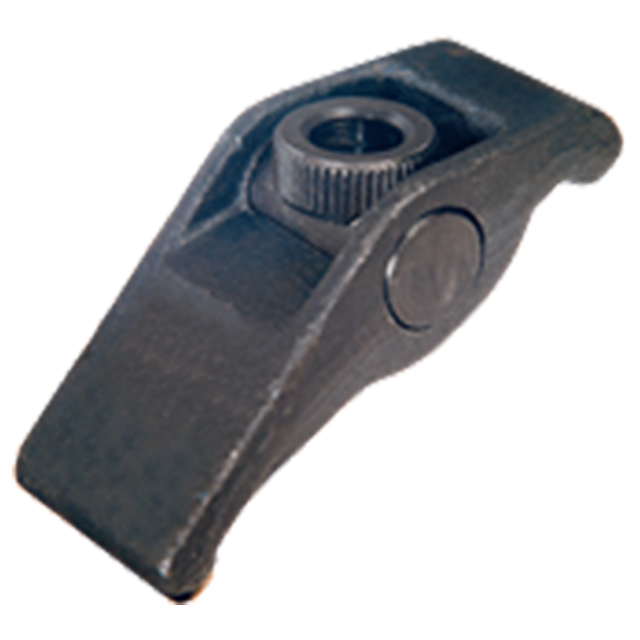

Forged Adjustable Clamps
Rugged forged steel pivot clamp. Provides instant height adjustment without blocks or shims. All-in-one construction allows quick setup and eliminates lost clamp pieces. Turn clamp 90° in either direction for loading clearance. Removable brass heel protects machine table.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Forged 1045 Steel | - | Black Oxide | Yes | Yes |
| Pivot | Mild Steel | - | Black Oxide | Yes | Yes |
| Removable Heel Pad | Brass | - | - | Yes | Yes |
Parts Specification
| Stud Size | Recommended Stud Length | Clamping Range (Inch) | A Diameter | B | C | D | E | F | G |
| 3/4-10 or M20 | 7" or 175mm | 0 to 4-1/4" | 13/16 | 6-1/4 | 2-5/8 | 2 | 2-1/4 | 2-1/8 | 3-1/2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
