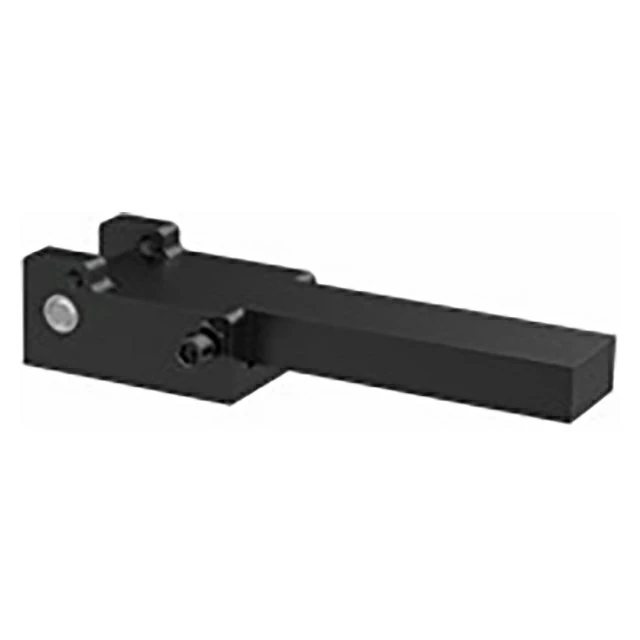

Modular Hinged Bushing Plates
Modular Hinged Bushings Plates are precise, heavy-duty busing-plate assemblies for large-scale production jigs. The standard kit includes a steel base with ground steel rest pads installed for accurate location, steel sides with installed liner bushings as bearings for the hardened pivot pin, and a swing-away arm that is left unhardened for customer modifications. The arm swings freely but can be locked at 100 deg with the optional locking mechanism. Additional locking options allow for the arm to be locked in the closed position. Fine adjustment of the arm position can be made using a Ball-Ended Thrust Screw for optimal alignment. Made in USA.
Configuration Options
| Configuration Options | |||||
| Item | Description | Steel | Aluminum | ||
| 1 | MHBP BASE | Yes (STEEL REST BUTTON INSTALLED, Black Oxide Finish) | Yes (DELRIN REST BUTTON INSTALLED) | ||
| 2 | MHBP SIDE | Yes | Yes | ||
| 3 | MGBP ARM | Yes | Yes | ||
| 4 | JAM NUT | Yes | - | ||
| 5 | BALL THRUST SCREW | Yes | - | ||
| 11 | HAND RETRACTABLE PLUNGER | Yes | - | ||
| 12 | LOCKING RECEPTACLE | - | Yes | ||
Parts Specification
| A (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) | K (Inch) | M (Inch) |
| 1.95" | 3.5" | 4.33" | 3.88" | 2-1/2" | 1.21" | 10.5" | 10.7" | 1-1/4" | 1.97" | 3.00" |
