Air Clamping Valves

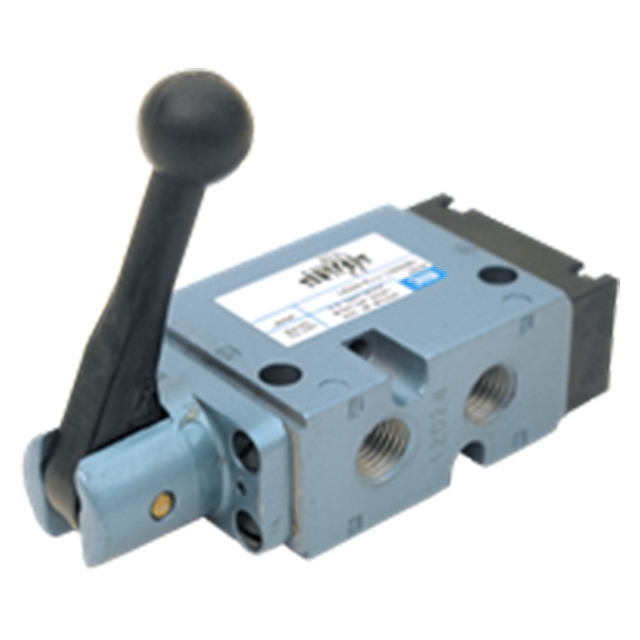

CL-14-PCAV

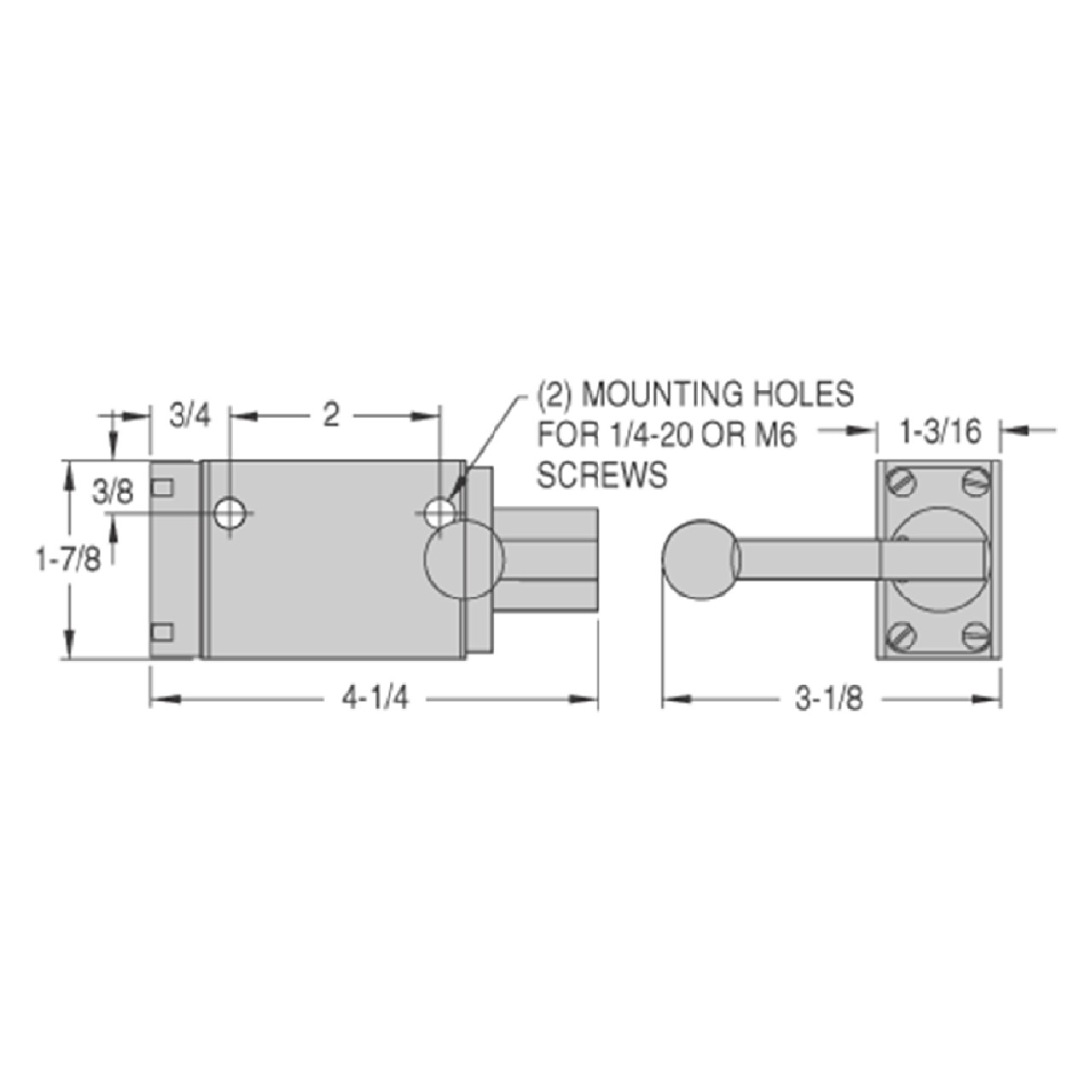

Versatile two-position, four-way valve for simple and convenient clamp control. Five 1/4-NPT ports: one input port, one clamping port, one unclamping port, and two air-exhaust ports. 150 psi maximum pressure.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Brass | - | - | ✔ | ✔ |
Parts Specification
| Valve Type | Ports | Maximum Operating Pressure |
| 4-Way, 2-Position | 1/4-NPT Female x 5 | 150 psi |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
