CL-150-VTC Series
Open Arm, Flanged Base
Arm opens 100° while handle moves 56°. Open arm provides adjustable spindle location. Choice of flanged base or straight base.

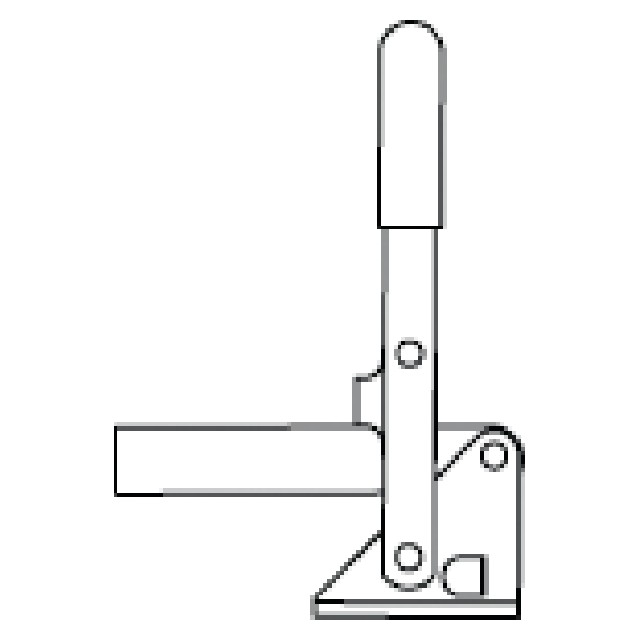

Clamping Action
Clamped Position
Open Position

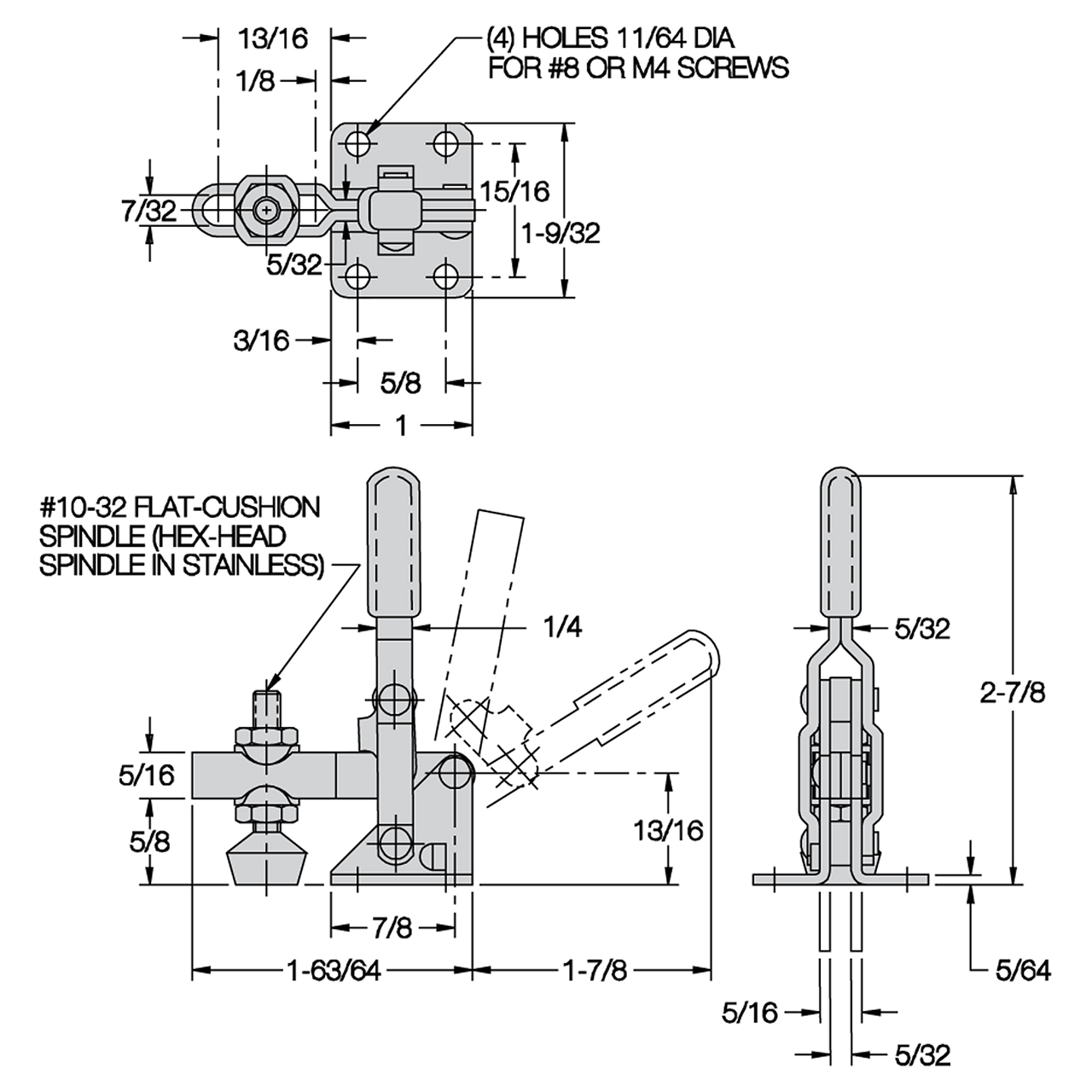

Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008, 1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Open Arm, Flanged Base | 100lbs. | 0.2lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Holding Capacity:
100 lbs.
Ships:
From Manufacturer
