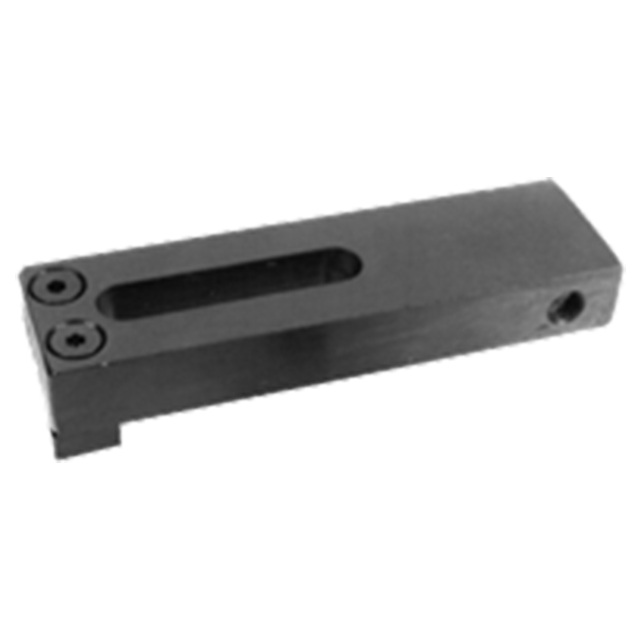

Slotted-Heel Padded Clamp Straps
Slotted-Heel Clamp Strap that features a replaceable clamping pad attached with two screws (furnished). Padded clamp straps also easily accept custom pads or other attachments. These clamp straps have a slot underneath to slide straight back for clear loading. The tapped hole at the rear of each side allows installing a Finger Pin. Made in USA.
Clamping Pads
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Strap | 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| Steel Clamping Pad | 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Parts Specification
| A Stud Size | B | C | D | E | F | G | H | J | K | L | M | N Thread | P | Q |
| 3/8-16 or M10 | 5/8 | 1-1/4 | 4-1/2 | 11/16 | 1-5/8 | 1/2 | 1/4 | 27/64 | 9/32 | 3/8 | 1/2 | 5/16-18 | 5/8 | 1/4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
