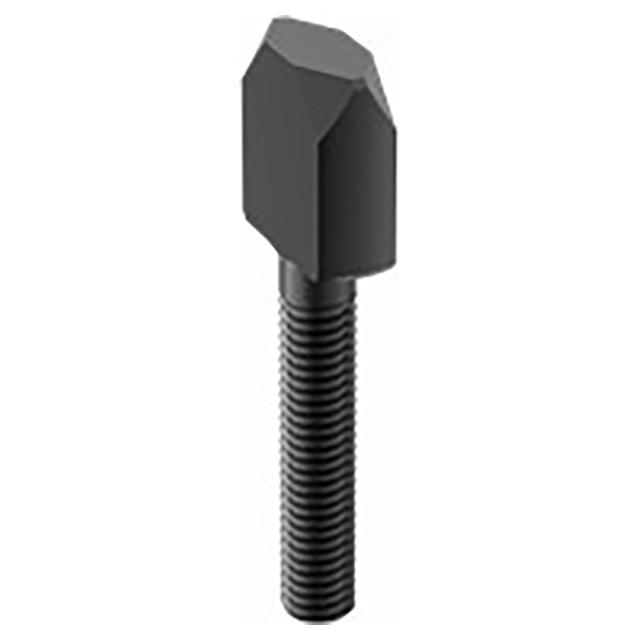

Quarter-Turn Screws
Rotate screw 90° (1/4 turn) to latch. Ideal for swing-away lids and jig plates. Beveled edges allow easy insertion into a slot. Quarter-Turn Screws can be used in open or closed slots. Made in USA.
Application Information
Quarter turn screws can be used in open or closed slots. Turn the screw 90 ° (1/4 turn) to secure.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Thread Size | A (Inch) | B (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) |
| #10-32 | 1-1/2" | 7/8" | 1/2" | 3/16" | 1" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
