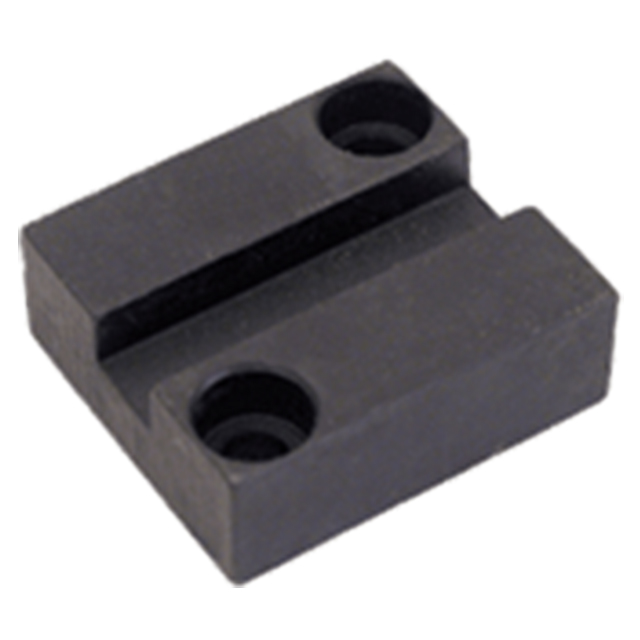

Rear-support sliding block for Tapped-Heel Clamp Straps. Guides clamp strap straight back for part loading.
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Clamp-strap Stud Size | A | B | C | D | E | F | G Mounting Screws | H | J |
| 1/4-20 or M6 | 0.198 | 0.05 | 1/4 | 3/4 | 13/64 | 1-3/16 | #6-32 or M4 | 15/32 | 25/32 |
