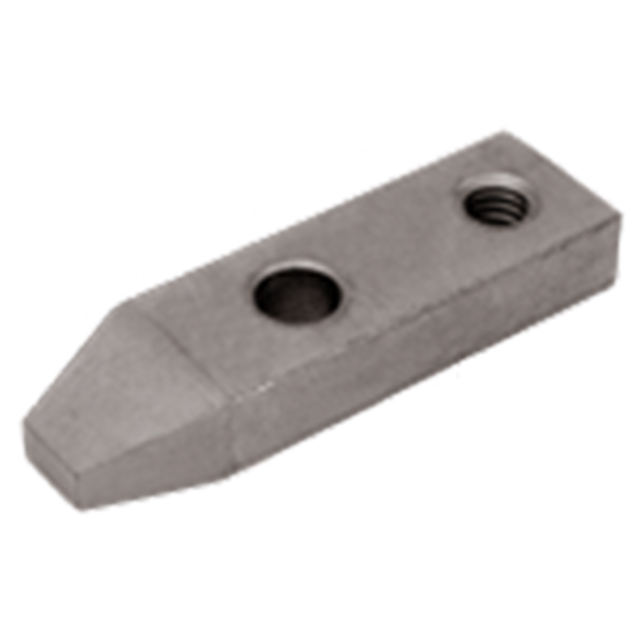

Tapered-Nose Clamp Straps
Mini-size version of Tapped-Heel Clamp Straps. Tapered nose allows clamping in tight spaces. Since this strap is not slotted, turn 90° for loading clearance. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut.
Material
Material | Heat Treat | Finish | DFARS | RoHS |
300-Series Stainless Steel | - | - | Yes | Yes |
Parts Specification
A Stud Size (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) | K (Inch) | L Thread |
1/4-20" | 3/8" | 5/8" | 2" | 15/16" | 13/16" | 15/32" | 5/32" | 5/16" | 9/32" | 1/4-20 |
