Product Information

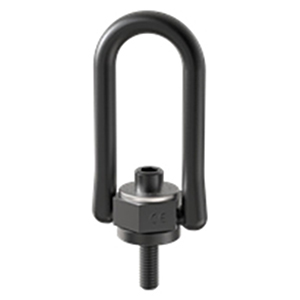

A long-ring version of our Forged Swivel Hoist Rings features a forged lifting ring and simpler construction for easy disassembly. Swivel Hoist Rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction. Available with inch or metric threads in load capacities up to 10,000 lbs and a 5:1 safety factor, many with a choice of bolt length. Complies with ASME B30.26, CEN/TC 168 Reference EN 1677-1: 2000 Part 1 and 2006/42/EC.
Application Information_1

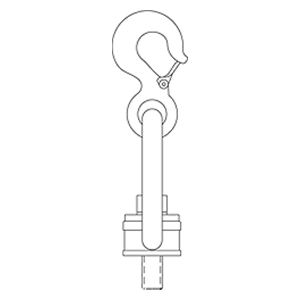

Forged Swivel Hoist Rings can be easily disassembled. One benefit of this is easier cleaning. Disassembly also allows adding a lifting hook, as shown in this example, for use when lifting with a sling.
Technical Information
Complies with ASME B30.26 Hoist Ring Technical Information Hoist Ring Safety Precautions Types of Hoist Rings
| Item | Material | Head Tread | Stud |
| Body Ring Bushing | 4140 Steel | Head Treaded | Black Oxide |
| Washer | 17-4PH | H900 | Passivated |
| Manufacturer Part Number | CL-2500-FSHR-1-LR |
| Thead Size (Inch) | 1/2"-13 |
| Product Type | Forged Swivel Hoist Ring |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
