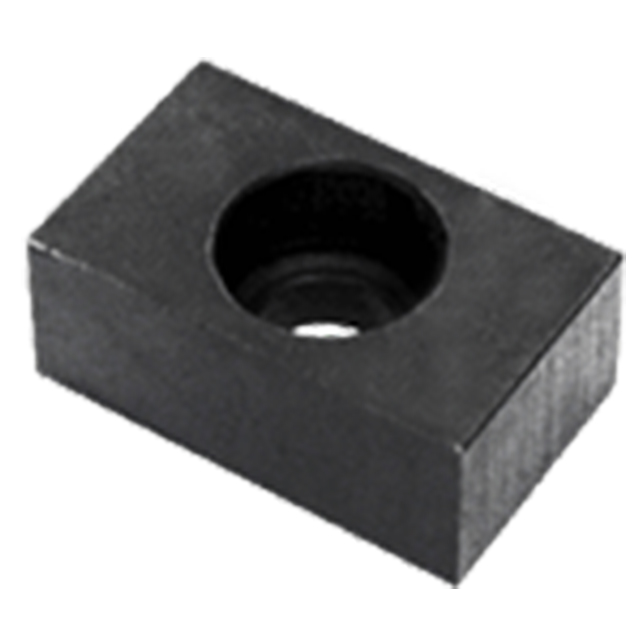

Standard rectangular key for fixtures slotted to mount on one specific machine table. Depth of slot in the fixture should be 1/2 of the B dimension. Fasten with a socket-head cap screw. Made in USA.
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| Table Slot Size (Inch) | A (Inch) | B (Inch) | C (Inch) | D Mounting Screw (Inch) |
| 5/8" | 0.6250" | 1/2" | 3/4" | 5/16" |
