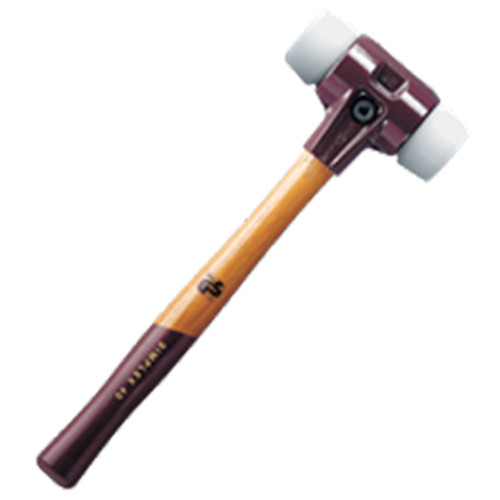

Design your own custom hammers. These professional soft-face mallets can be customized for specific applications by selecting the proper hammer inserts. The Simplex system uses a patented hammer housing with 3-point clamping that ensures a safe hammer assembly. Made in Germany.

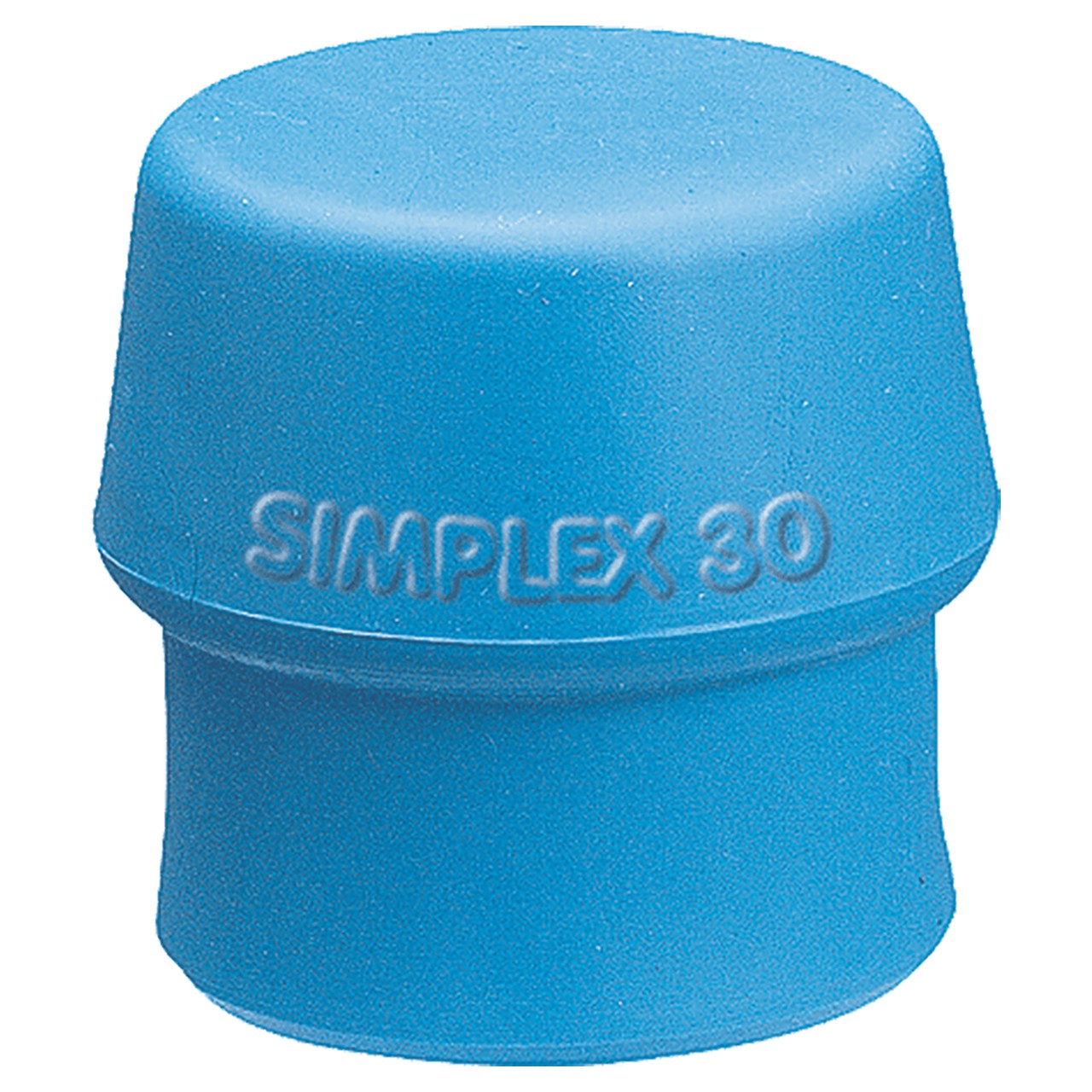

Type A: Blue Thermoplastic (Soft)

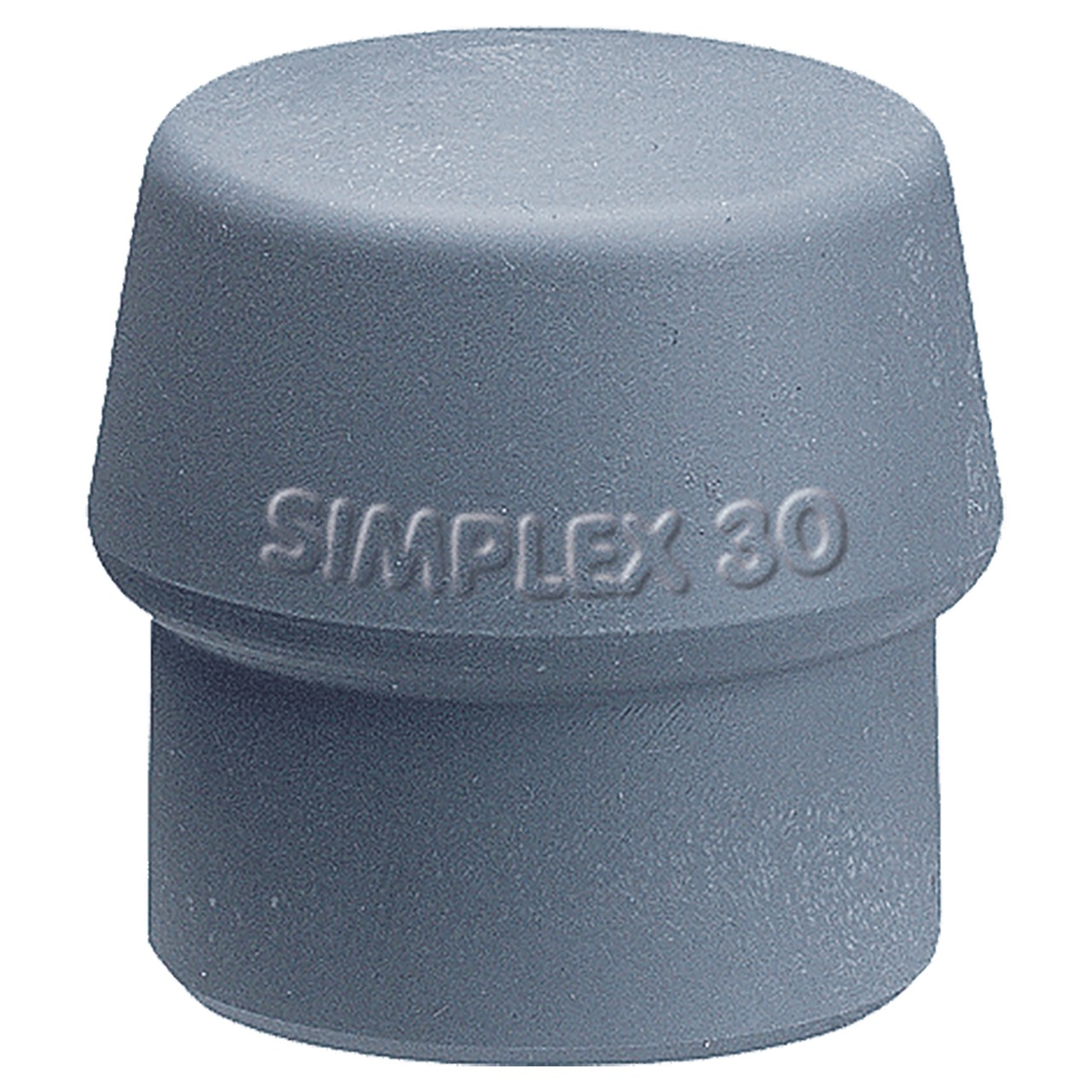

Type B: Gray Thermoplastic (Medium Soft)
Type C: Black Rubber (Medium Soft)

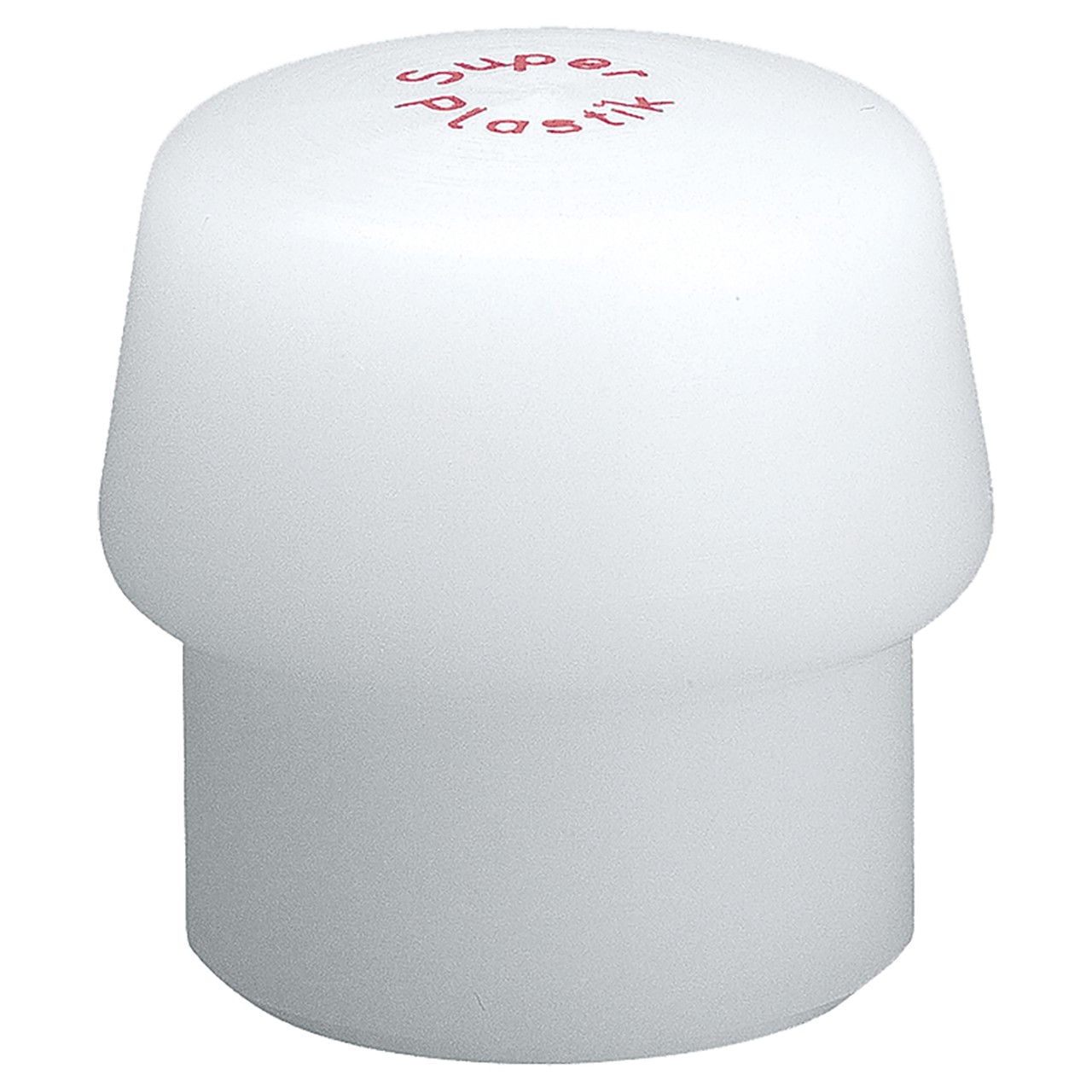

Type D: White Superplastic (Medium Hard)

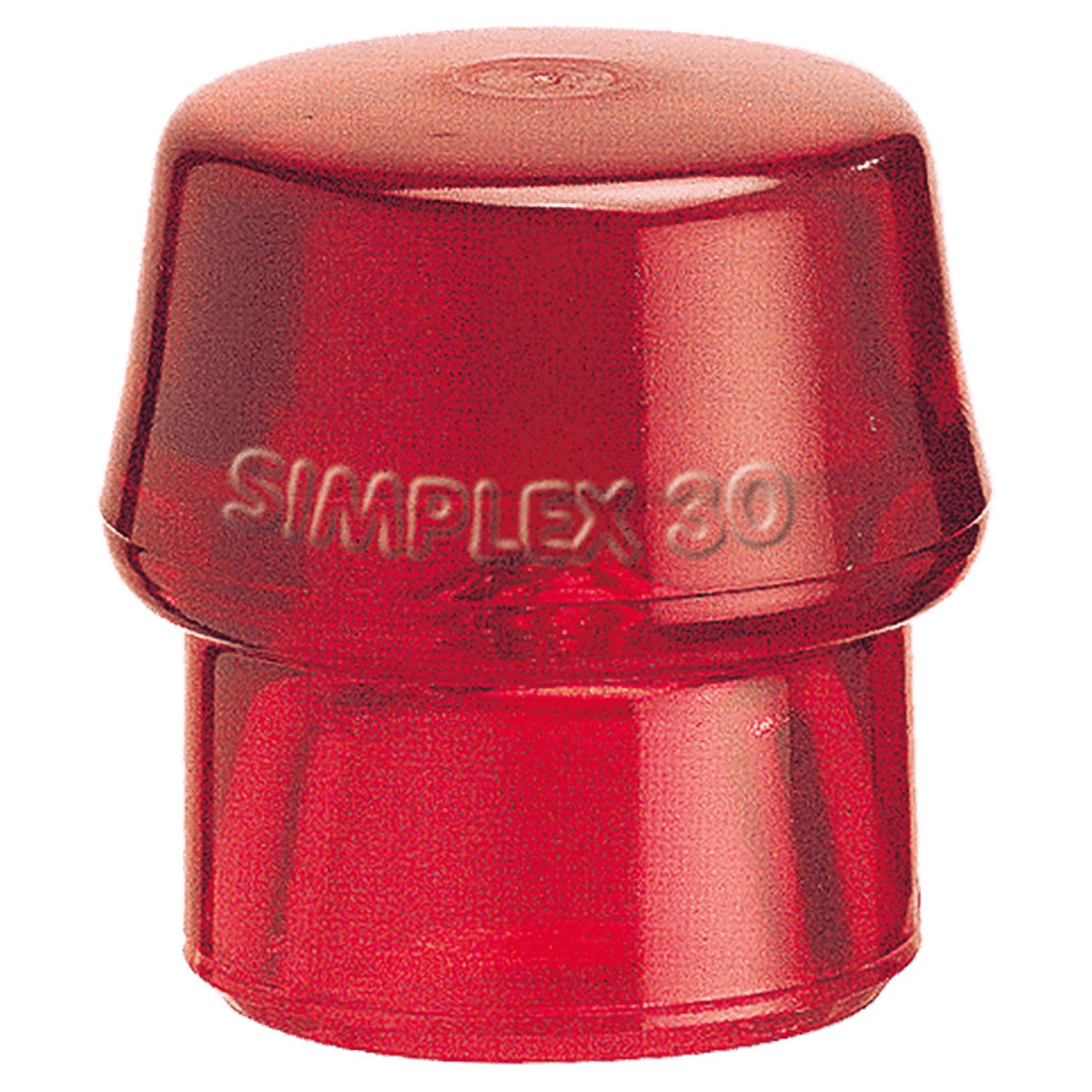

Type E: Red Plastic (Hard)

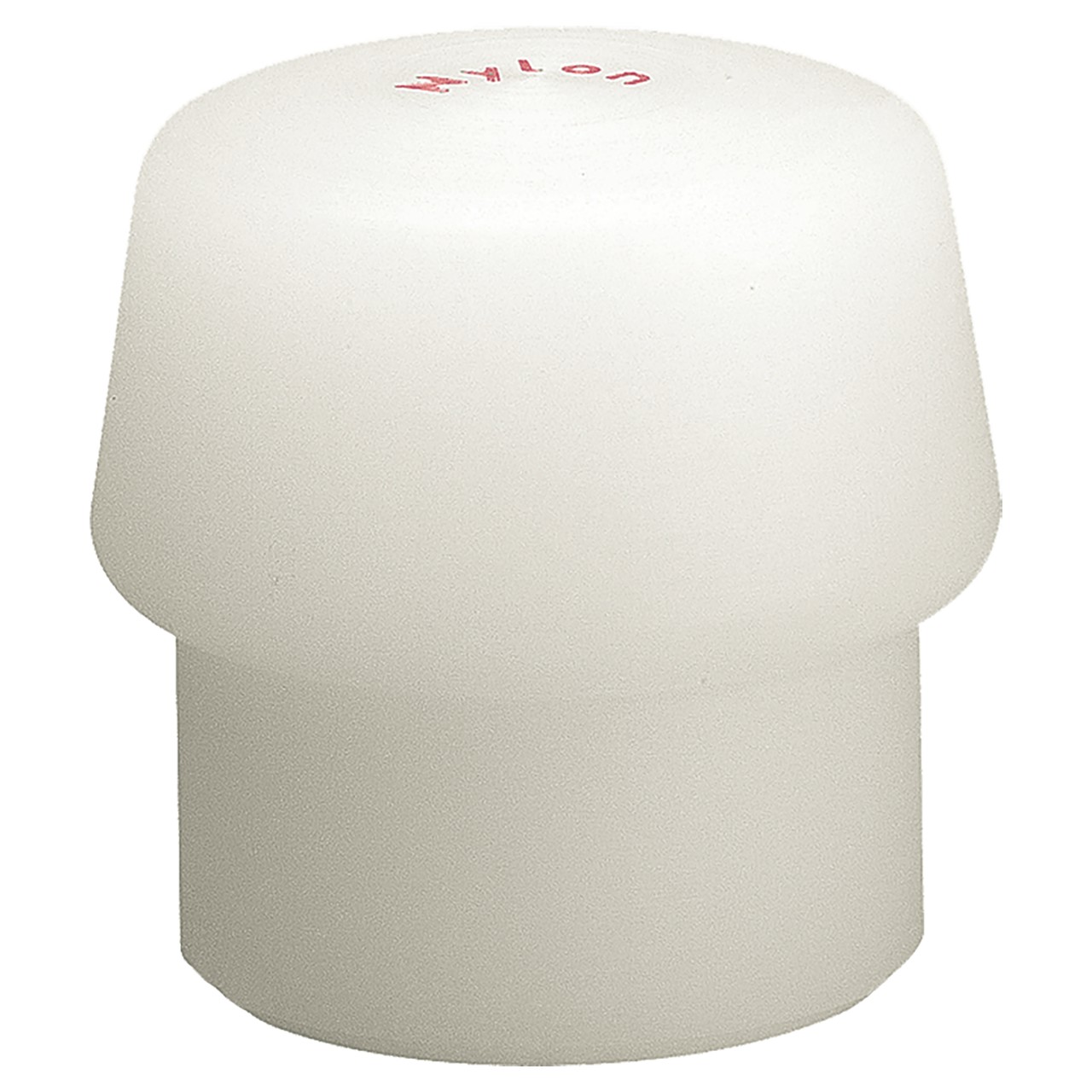

Type F: White Nylon (Hard)

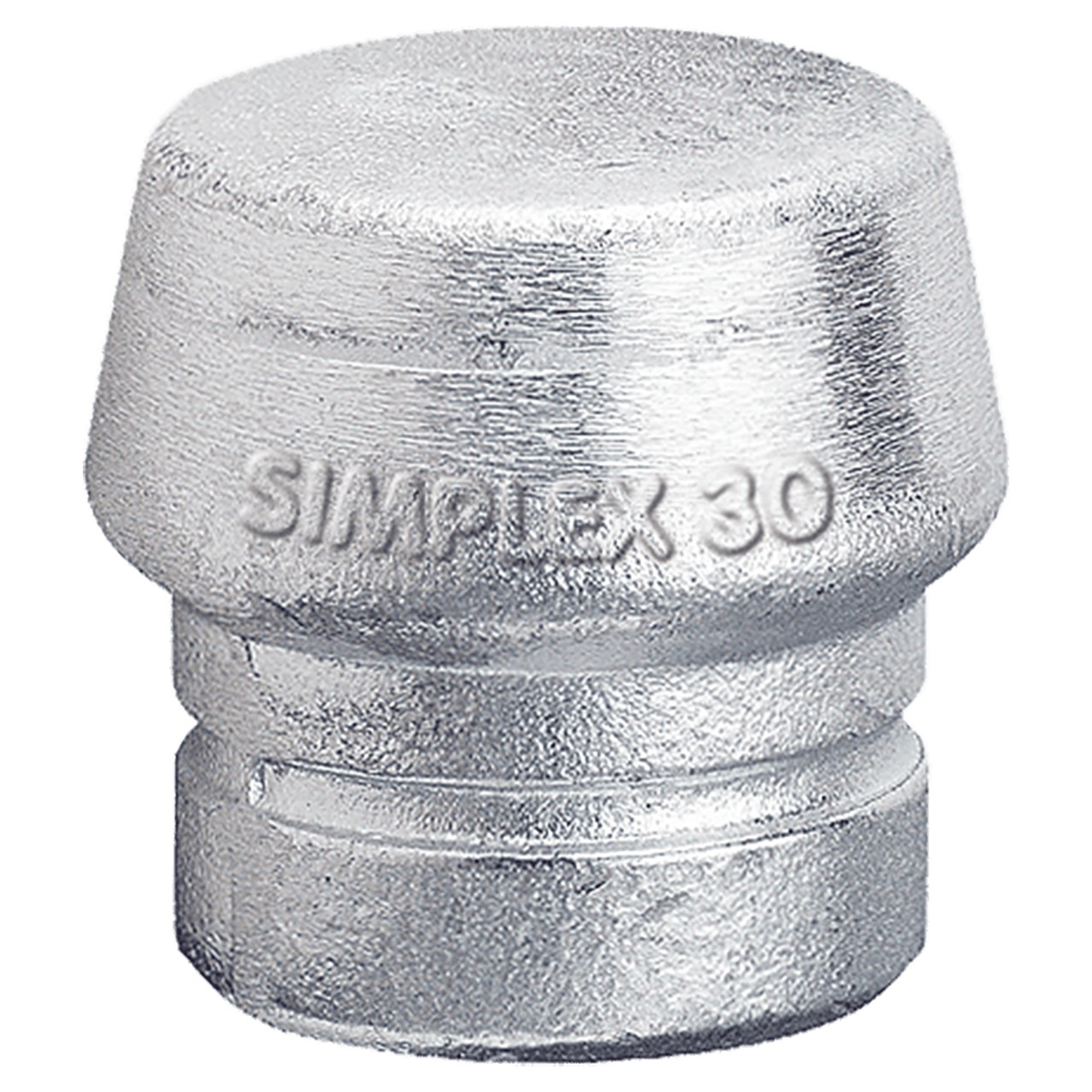

Type G: Soft Metal (Hard)
Type H: Copper (Hard)
Always wear safety goggles when using a hammer or any striking tool. Bystanders must also wear safety goggles. Never strike the hammer with or against another striking tool, hardened nail, or any other hard object that could cause damage. Chipping could occur, resulting in possible eye or other injury. Discard any chipped or damaged hammer. If assembling the hammer yourself, ensure that all parts are properly fitted into the handle housing and that the screw is tightened to the specified torque. Check hammer before each use. Using a hammer with loose or improperly fitted parts could result in serious injury. Use only genuine Simplex Hammer replacement components.
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Housing | Cast Iron | - | reinforced, furnished with high-strength socket-head cap screw, spring washer, and nut | Yes | Yes |
| Handle | Fiberglass with ergonomic rubber grip | - | - | Yes | Yes |

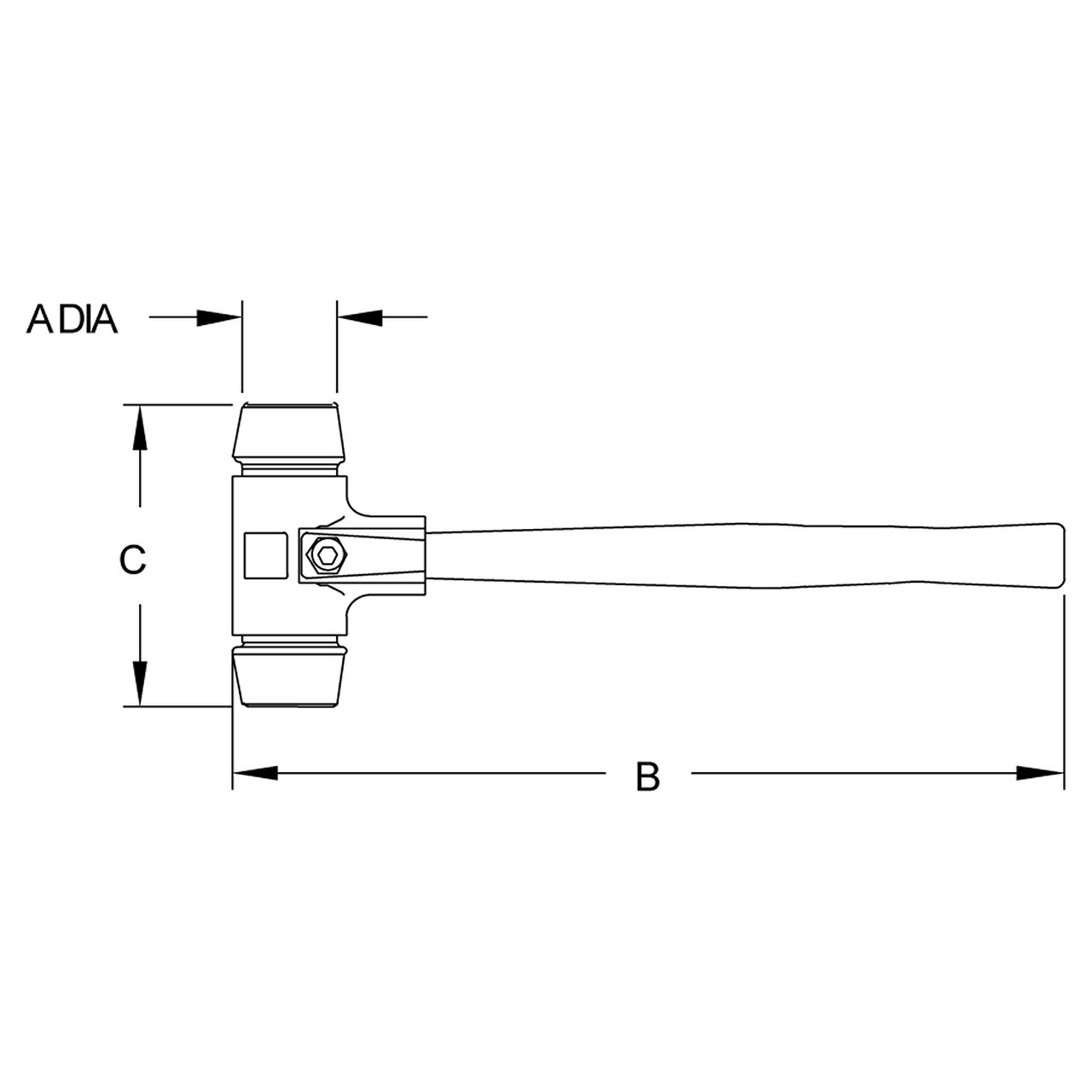

| A Diameter | B (Inch) | C (Inch) | Inserts | Tightening Torque (ft-lbs) | Weight (lbs) |
| 30mm (1.18) | 11.81" | 3.54" | Red Plastic (Hard) & White Nylon (Hard) | 18 ft-lbs | 0.9 lbs |
