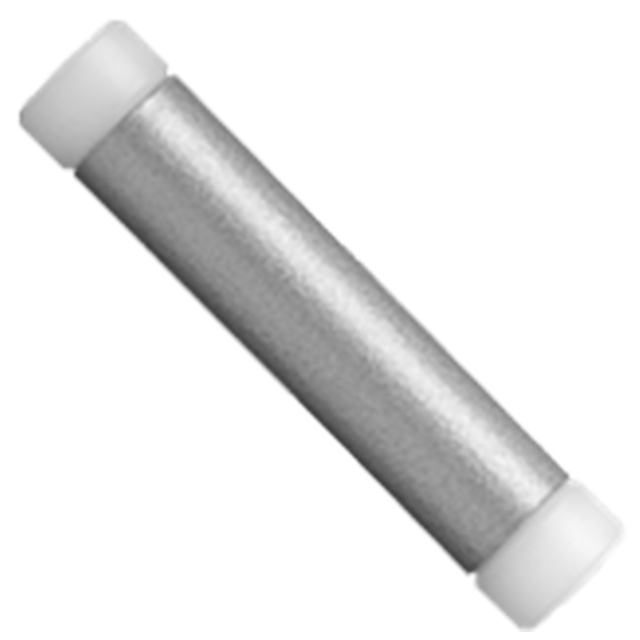

Carr Lane CL-3408-040-NRH | 1.57" Diameter x 6.28" OAL No-Rebound Drop Hammer

$45.84
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
50019238
UPC:
Weight:
1.81 LBS
Shipping:
Calculated at Checkout

No-Rebound Drop Hammers

No-Rebound Drop Hammers provide the impact of a normal hammer even when access is restricted. No-Rebound Hammers deliver full impact, about 50% greater than a standard hammer. The housing is filled with special steel pellets that transfer momentum to the impact point. Ideal for assembling machine parts without damage. Speeds up work while reducing fatigue. Allows better hammer control by absorbing the bounce. Made in Germany.

Application Information

No-Rebound Drop Hammers are filled with special steel pellets that transfer momentum to the impact point.

Inserts

No-Rebound Drop Hammers have replaceable nylon inserts. These nylon inserts are hard, grease and oil resistant, highly elastic, and have superior strike effectiveness. Applications include assembly operations, metalworking, tooling, positioning of workpieces, automotive assembly and repair work, joining of workpieces, sheet metal working, dent removal, mold construction, and assembly of sharp-edged workpieces.

Safety Precautions

Never allow the hammer's striking faces to wear down to the point where the hammer housing makes contact with the work surface, as irreparable damage could result. Always wear safety goggles when using a hammer or any striking tool. Bystanders must also wear safety goggles. Never strike the hammer with or against another striking tool, hardened nail, or any other hard object that could cause damage. Chipping could occur, resulting in possible eye or other injury. Discard any chipped or damaged hammer.

Material

Item Material Heat Treat Finish DFARS RoHS
Housing Steel assembly containing steel pellets - - Yes Yes
Insert Nylon - natural white color, hardness 68-78 Shore D Yes Yes

Parts Specification

Face DiameterWeight (lbs)Overall LengthHead Length
40mm (1.57)1.8 lbs6.286.28
