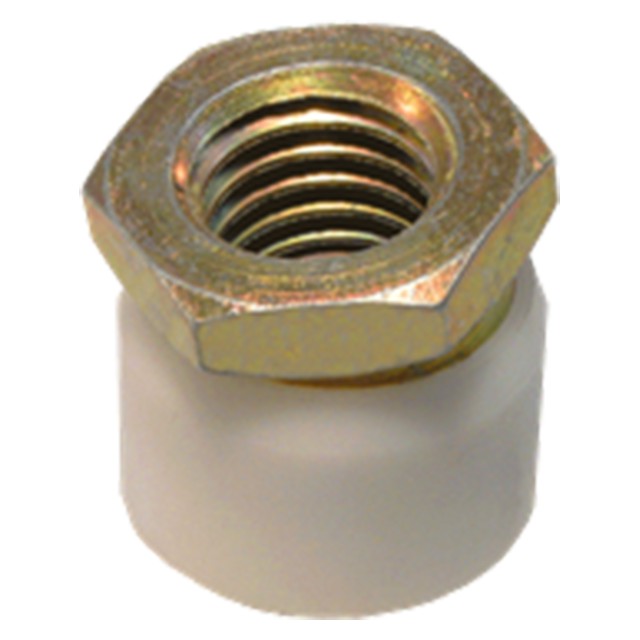

Swivel Pad Feet
Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides a 20° total swivel angle. The Delrin pad prevents marring, but has a lower load capacity than a steel pad. Made in USA.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | carburized-hardened zinc plated yellow chromate | Yes | Yes |
| Pad | White Delrin 500 | - | - | Yes | Yes |
Parts Specification
| A Thread (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) |
| 1/4-20" | 1/2" | 5/8" | 5/8" | 5/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
