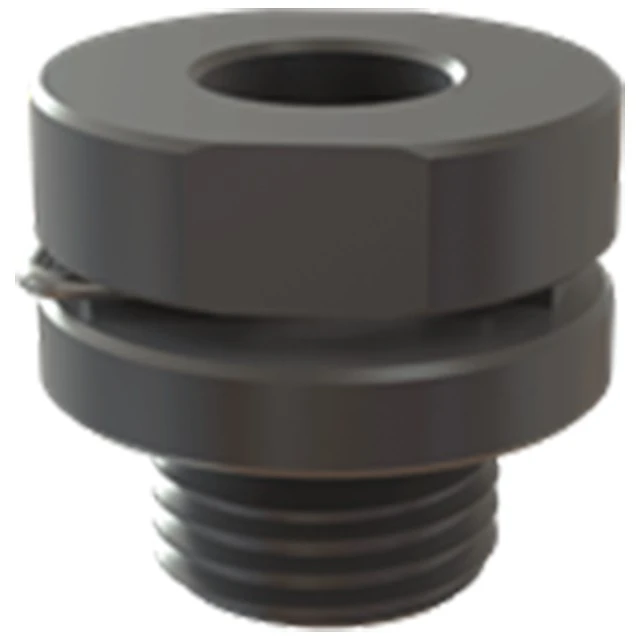

Threaded Locking-Pin Bushings
Locking-Pin Bushings are equipped with a retainer spring clip on the inside diameter, for use with all types of locking/captive pins and locating screws. The threaded version has an externally threaded shank, for installation in a tapped hole. This threaded design provides less locational accuracy, but is handy when captive clamping pins are used in non-locating applications. This version has an oversize ID (.040" larger than nominal size) as standard. Made in USA.
Replacement Spring Clips
Every Locking-Pin Bushing includes a spring clip, to retain its captive L Pin, T Pin, or Clamping Pin. To remove the pin from the bushing, the spring clip must first be removed.
Material
| Item | Material | Heat Treat | Finish |
| Locking Bushing | 1215 Steel | Carburized-hardened | Black Oxide |
| Retainer Clip | Spring Steel | - | N/A |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual Oversize (Inch) | B Thread (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) | F (Inch) |
| 1/4" | 0.2893" | 1/2-20" | 0.300" | 0.81" | 0.44" | 3/4" |
