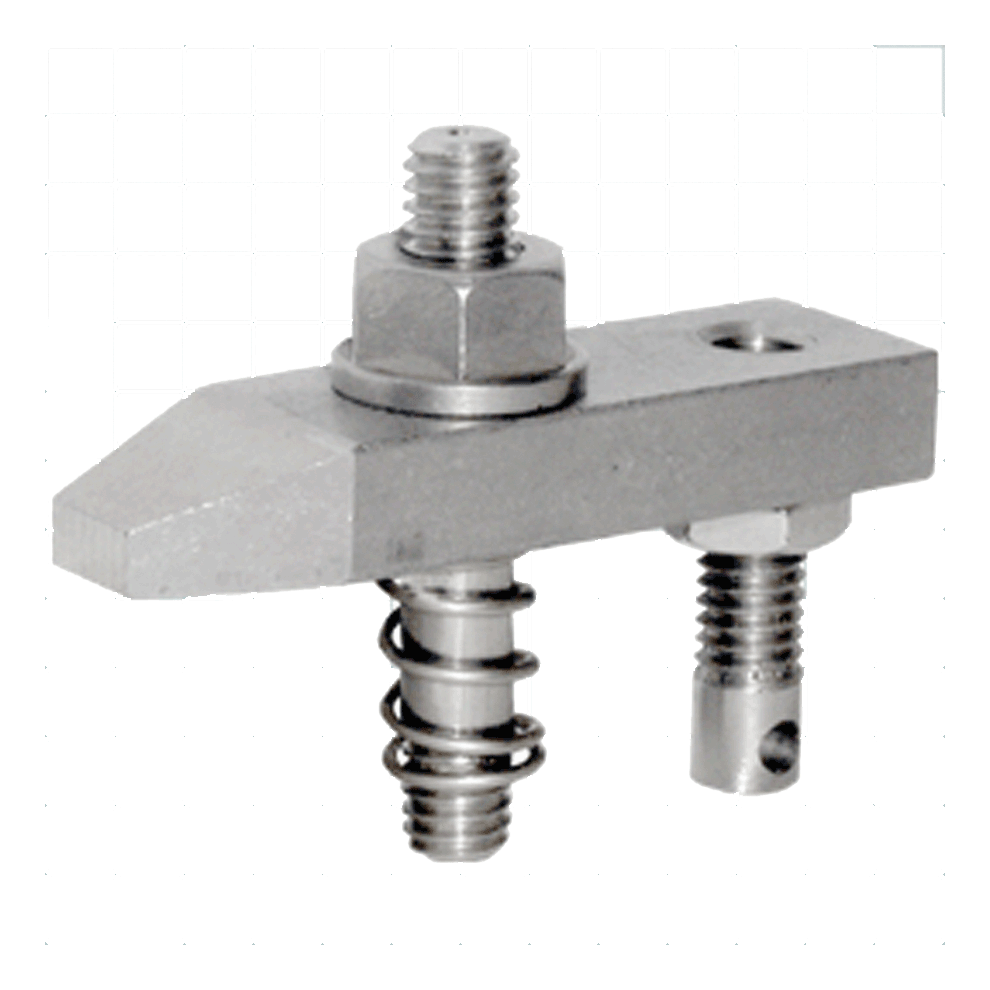

Tapered-Nose Clamp Strap Assembly
Mini-size version of Tapped-Heel Clamp Straps. Tapered nose allows clamping in tight spaces. Since this strap is not slotted, turn 90° for loading clearance. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut.
Assembly with Clamp Rest (-1)
This assembly includes a Tapered-Nose Clamp Strap plus the following Items:
- Clamp Rest
- Flange Nut
- Fixture Stud
- Clamp Spring
- Flat Washer
- Jam Nut
Material
Material | Heat Treat | Finish | DFARS | RoHS |
300-Series Stainless Steel | - | - | Yes | Yes |
Parts Specification
Thread Size (Inch) | A (Inch) | B (Inch) | C (Inch) | E (Inch) |
1/4-20" | 2" | 5/8" | 3/8" | 13/16" |
