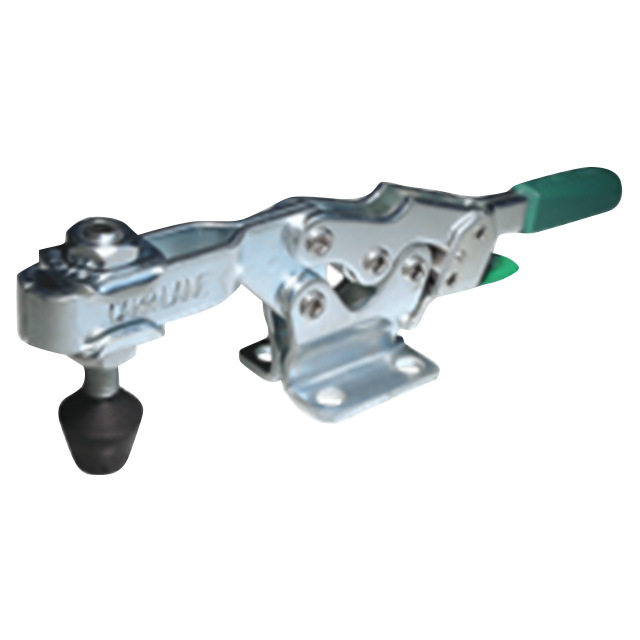

Carr Lane CL-450-LHTC | 500 lbs. Holding Capacity Horizontal-Handle Toggle Clamp

Safety Lock

Open Arm, Flanged Base

Safety-lock version of the CL-450-HTC toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle.

Strong-yet-compact horizontal-handle clamp. Arm opens 90° while handle moves 65°. Open arm provides adjustable spindle location. 500 lbs. holding capacity.

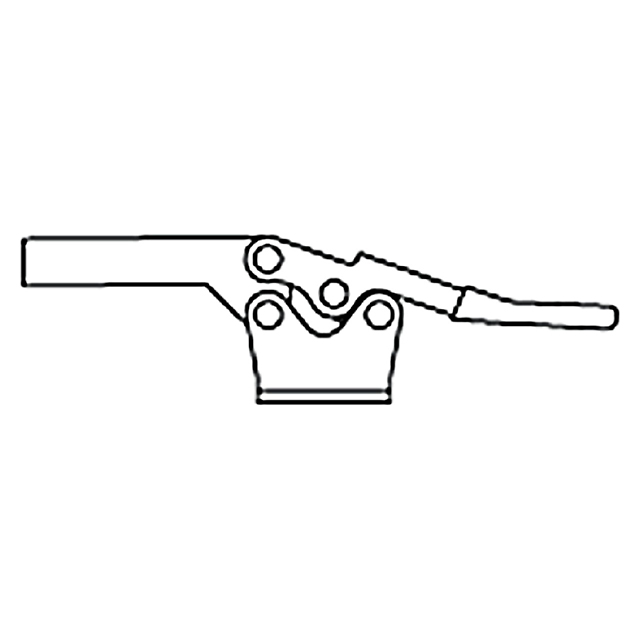

Clamping Action

Clamped Position

Press Lever to Unlock

Open Position

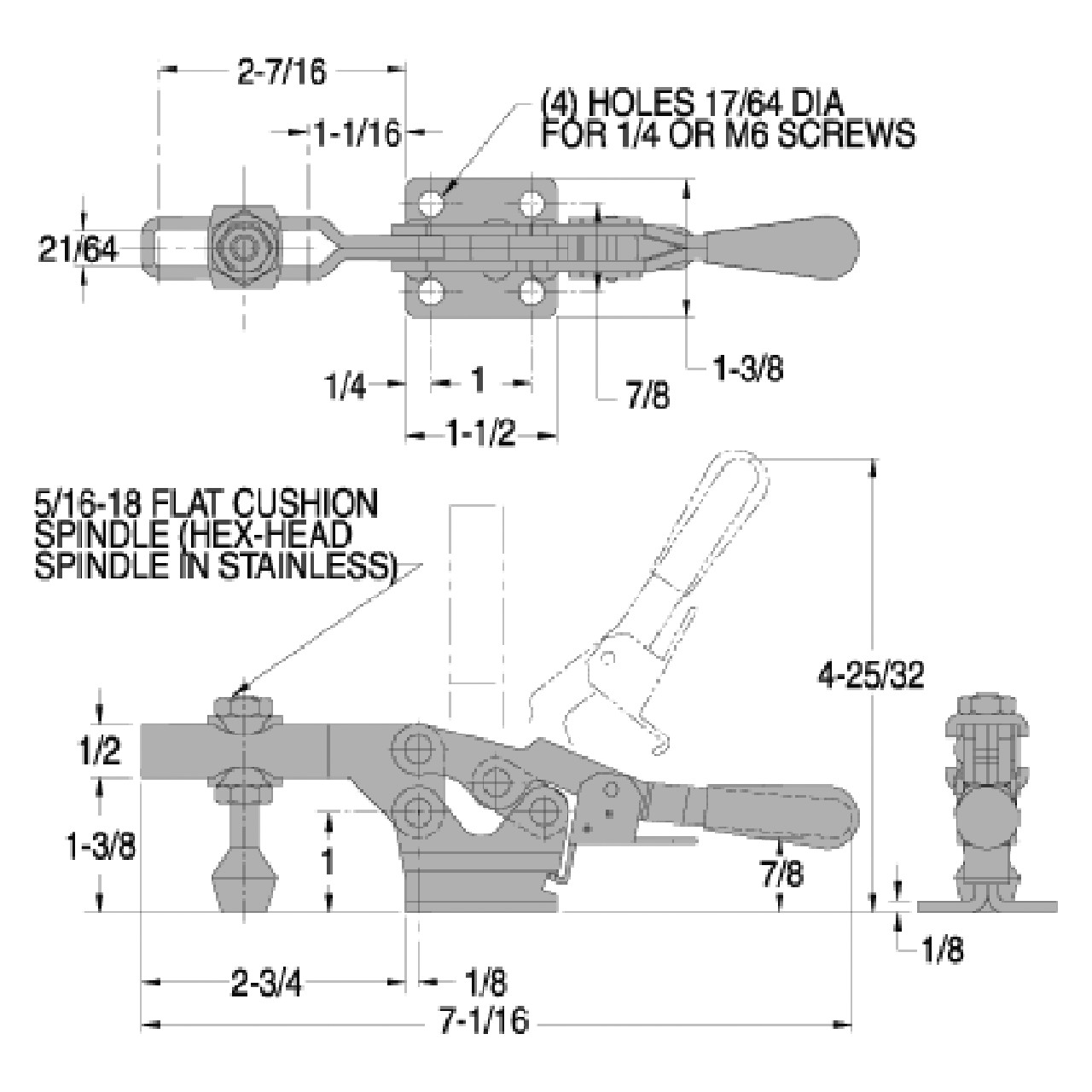

Material

Parts Specification
