Product Information

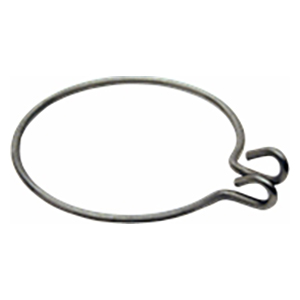

Cable Rings are used to attach a Cable Assembly to a radial groove. These wire rings must be installed in the groove before the cable is attached. Once the Cable Ring is in place, insert the cable through the ring's two end loops and fasten with a crimped Ferrule. Available to fit groove diameters from 1/8 to 1-1/2" (3 to 38mm). Can be used with our nylon-coated cable sizes #1, #2, and #3. Available in steel or stainless steel. Made in USA.

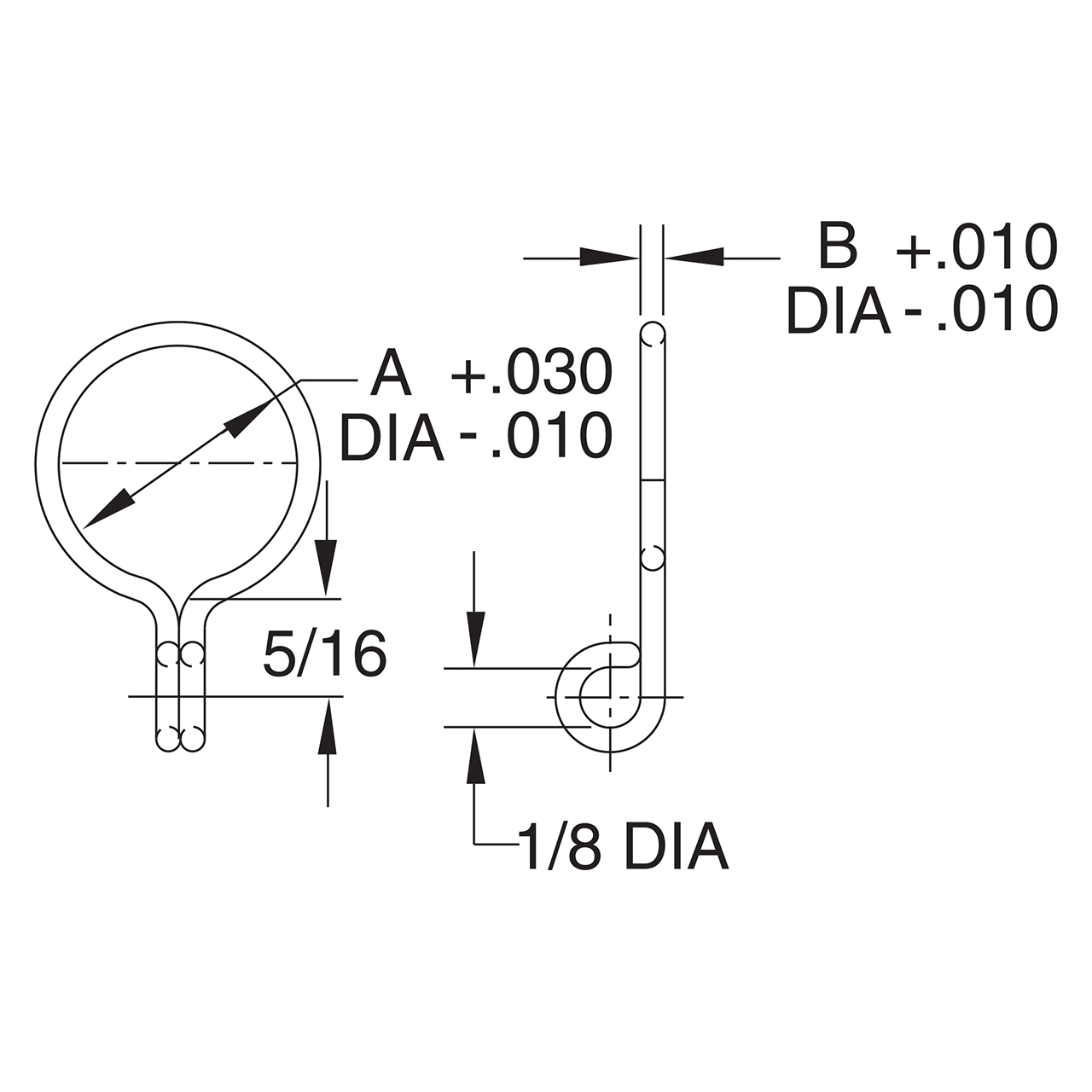

Parts Specification
| Part Number | A DIA | B WIRE DIA (STAINLESS STEEL) |
| CL-5-SKR-PACKOF2 | 5/16 (also 8mm) | .062 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
5/16"
Diameter (Decimal Inch):
0.3100"
Diameter (mm):
7.94mm
