CL-51-TC Series
Low Open Arm, Flanged Base

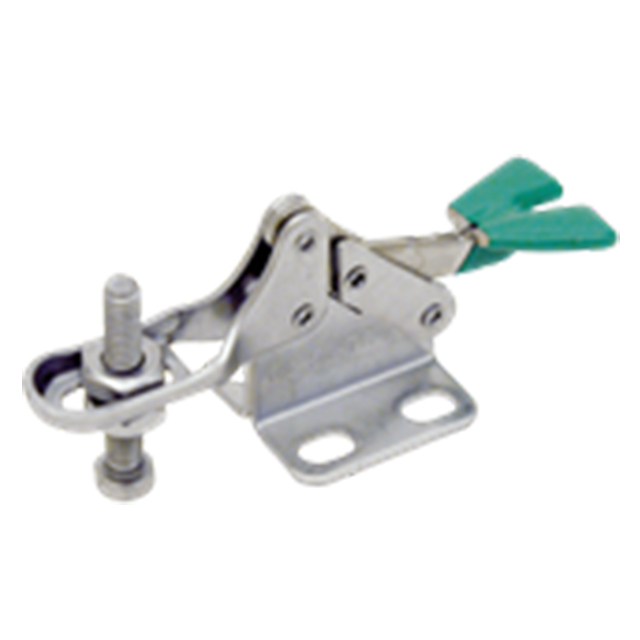

Miniature stainless steel clamps, perfect for electronics fixturing and other light-duty applications. Arm opens 90° while handle moves 90°. Open arm provides adjustable spindle location (choice of low or high arm). Choice of flanged base or straight base. 100 lbs holding capacity.
Clamping Action

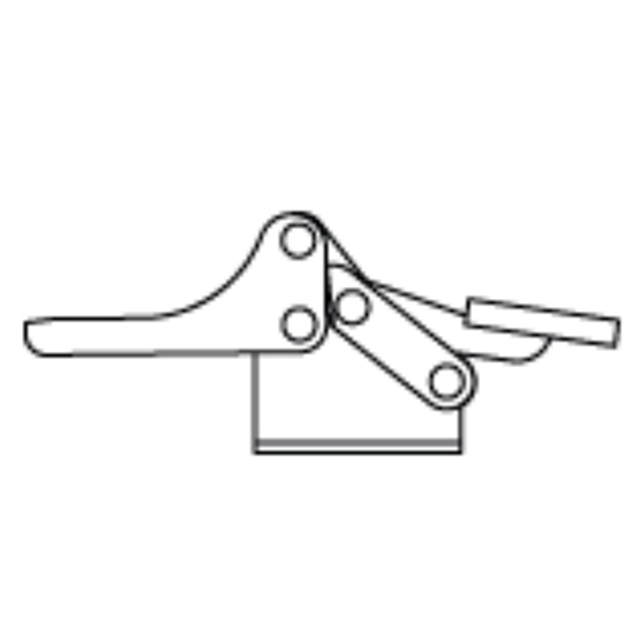

Clamped Position

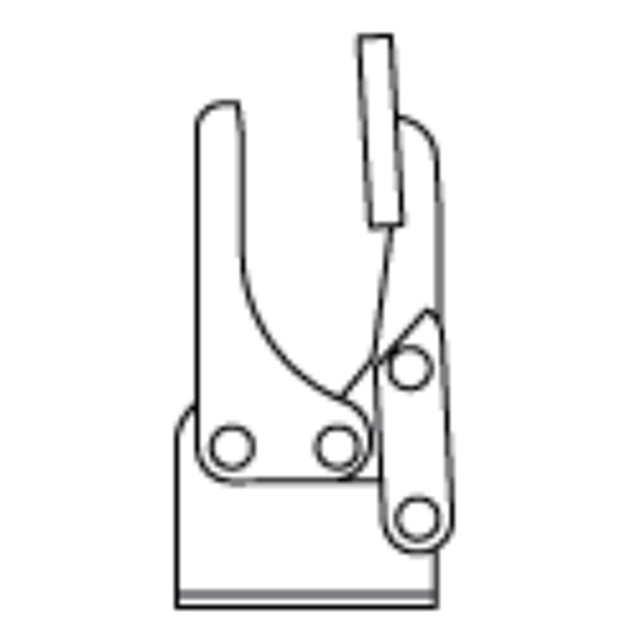

Open Position
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 300-Series Stainless | Yes | Yes | Yes | Yes |
| Rivets | 400-Series Stainless | Yes | Yes | Yes | Yes |
| Handle | Vinyl | Yes | Yes | Yes | Yes |
Parts Specification
| Description | Holding Capacity (lbs) | Shipping Weight (lbs) |
| High Open Arm, Flanged Base | 100 lbs. | 0.1 lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
