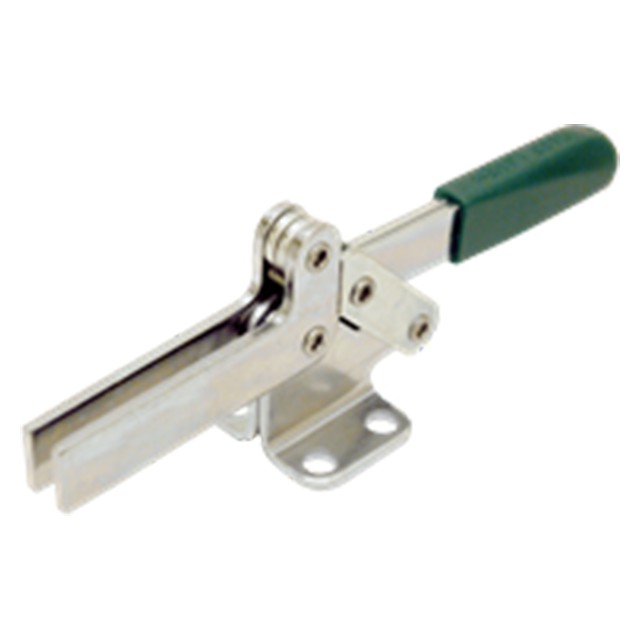

Open Arm, Flanged Base
Classic-design horizontal-handle clamp with a low clamping arm. Arm opens 90° while handle moves 90°. Open arm provides adjustable spindle location. Choice of flanged base or straight base. 625 lbs. holding capacity.

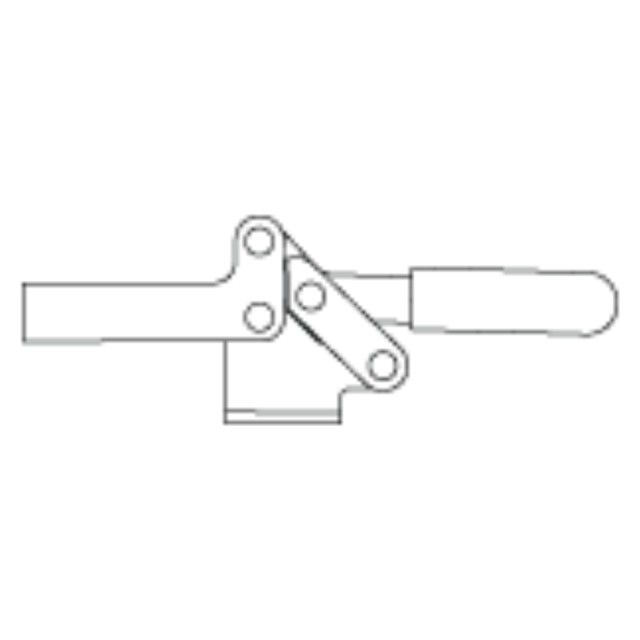

Clamped Position
Open Position
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008, 1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Open Arm, Straight Base | 625lbs. | 0.5lbs. |
