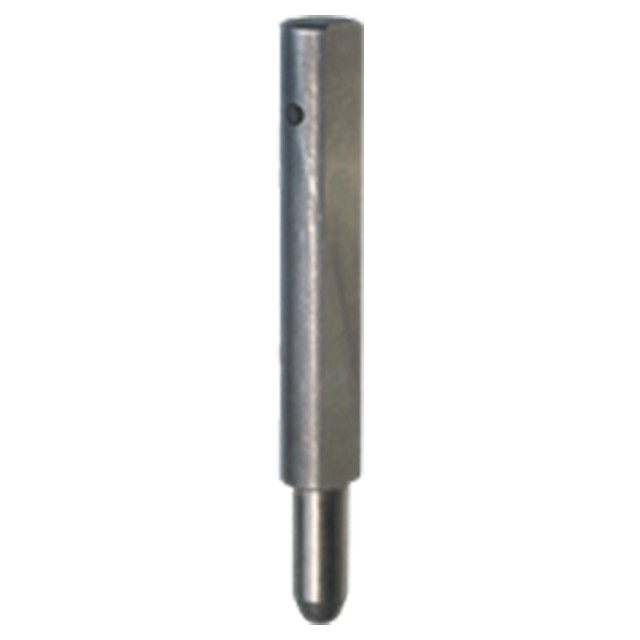

Locating Tools for Knurled Slotted Locator Bushings
Handy locating tool for holding knurled Slotted Locator Bushings in place during embediment. This stepped locating pin has a slip-fit-tolerance shank to fit a locating liner bushing in a template plate, and a head diameter with flats to fit a Slotted Locator Bushing perfectly. Made in USA.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| O-2 Drill Rod | - | N/A | Yes | Yes |
Parts Specification
| Pin Diameter (Inch) | A | B Diameter (Inch) | D Diameter (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) |
| 3/8" | 0.375 | 0.500" | 0.3750" | 0.50" | 0.78" | 2.00" | 0.37" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
3/8"
Diameter (Decimal Inch):
0.3750"
Diameter (mm):
9.53mm
