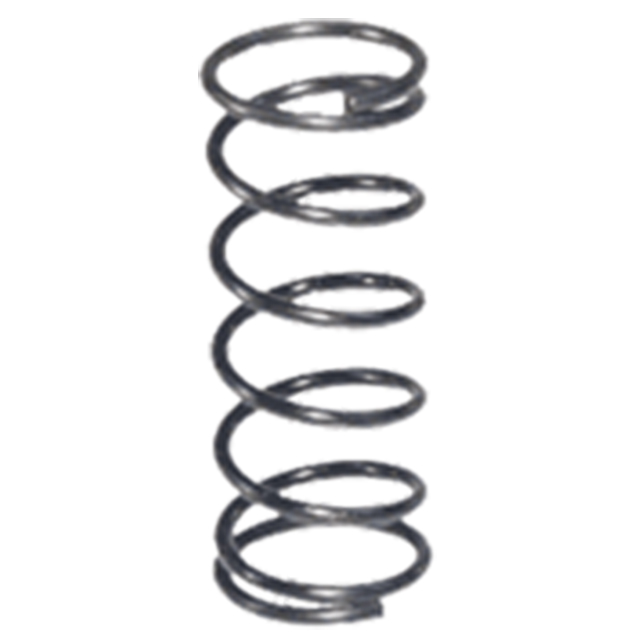

Clamp Springs
Sturdy spring that holds up a clamp strap for clear part loading.

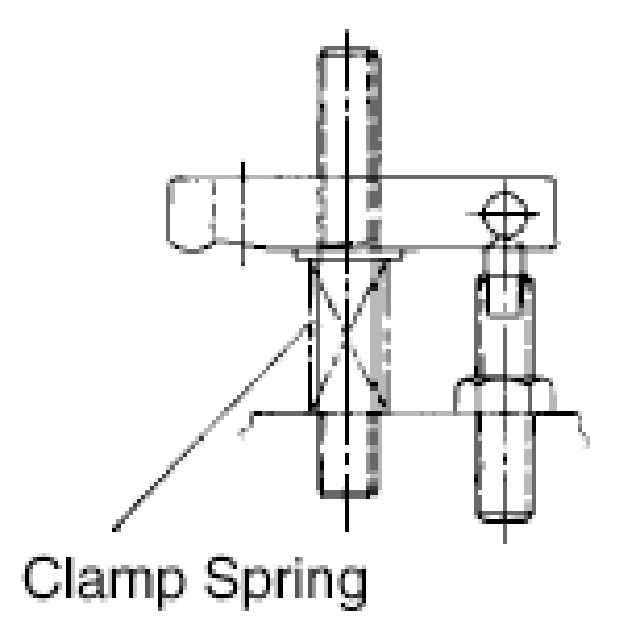

Application Information
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Springs | Spring Steel | - | Black Oxide | Yes | Yes |

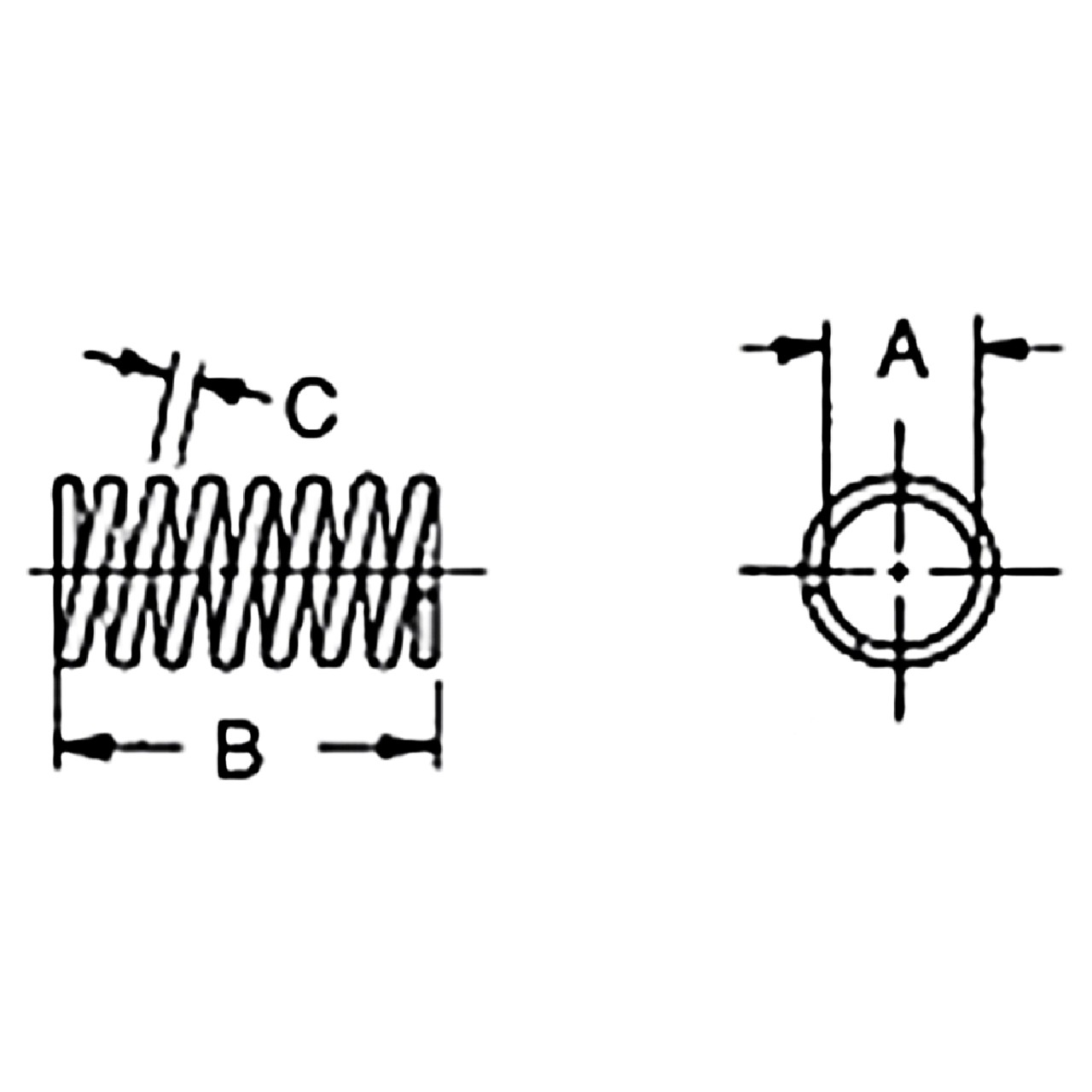

Parts Specification
| Fits Stud Size | A Diameter | B | C Diameter | Number of Coils |
| 5/16-18 or M8 | 23/64 | 1-7/32 | 0.062 | 6 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
23/64"
Diameter (Decimal Inch):
0.3594"
Diameter (mm):
9.13mm
