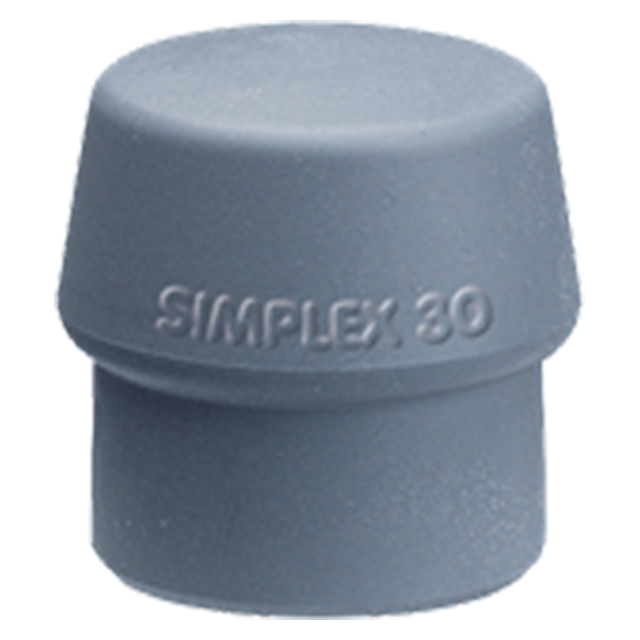

Thermoplastic Insert for Simplex Hammer
Gray thermoplastic inserts for Simplex Hammers are medium soft and non-smudging. Applications include assembly operations, car-body work, woodworking, furniture assembly, window and door construction, joiner's work, floor tiling, paving, and interior construction.
Application Information

Simplex Hammer System
Design your own custom hammers. Simplex soft-face mallets can be customized for specific applications by selecting the proper hammer inserts. Choose the same type of insert for both sides, or build a multi-purpose hammer with a different type of insert for each face. The Simplex system uses a patented hammer housing with 3-point clamping that ensures a safe hammer assembly.

Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Type B Inserts | Thermoplastic elastomer | - | gray color, medium soft, hardness 85-95 Shore A | Yes | Yes |
Parts Specification
| Hammer Size (Face Diameter) | Tightening Torque With Wooden Handle (ft-lbs) | Tightening Torque With Fiberglass Handle (ft-lbs) |
| 60mm (2.36) | 30 ft-lbs | 44 ft-lbs |
