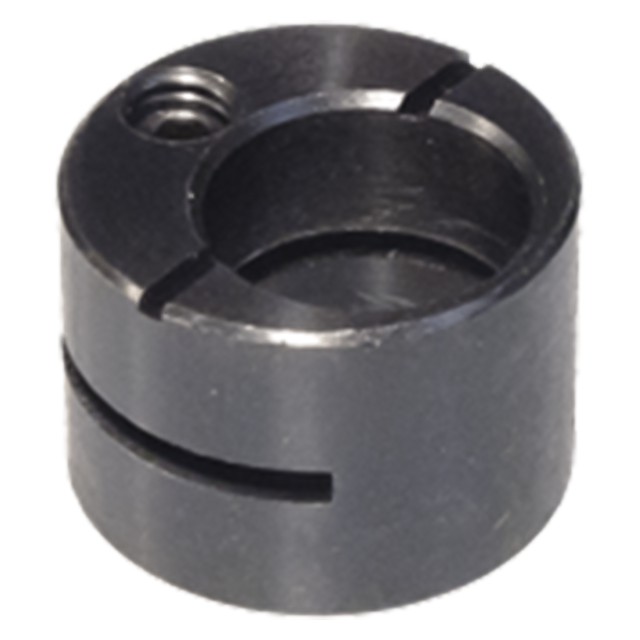

Eccentric Liners
can be used with Spring Locating Pins to provide additional adjustment for workpieces with looser tolerances. Use with any of the three types.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Steel | - | - | Yes | Yes |
Parts Specification
| A Diameter Nominal (inch) | A Diameter Actual (inch) | B Diameter Nominal (inch) | B Diameter Actual (inch) | C (inch) | D (inch) |
| 7/16" | 0.4375/0.4386" | 11/16" | 0.6875/0.6858" | 0.469" | 0.079" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
7/16"
Diameter (Decimal Inch):
0.4375"
Diameter (mm):
11.12mm
