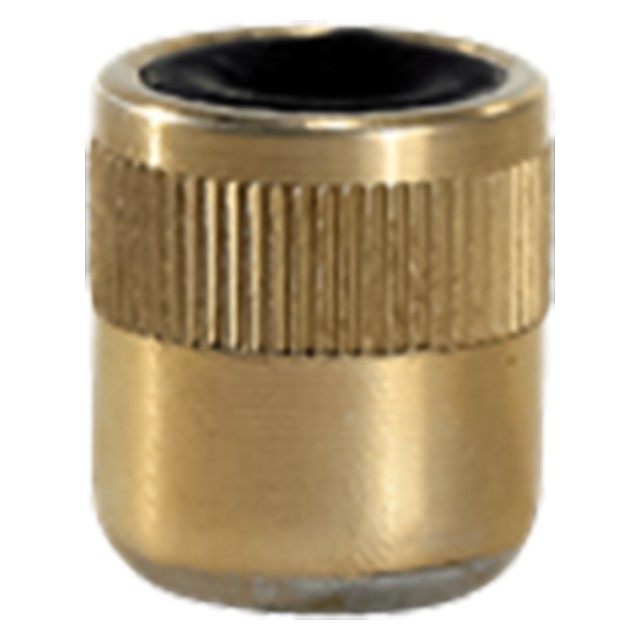

Carr Lane CL-7-SLPR-1 | #8-32 Thread Hand-Retractable Plunger

Spring Locating Pins-Tapped Receptacle for Custom Pin

Spring Locating Pins are press-fit inserts that provide an extremely compact way to apply side force to a workpiece, for positioning or light clamping. The version has a tapped receptacle for installing custom contact pins, together with a coil spring for maximum travel. Choice of light, medium, or heavy force in each size.

Design Considerations

Dimension E is a theoretical contact height which allows F maximum travel and provides the side force listed in the table. Taller pins will have more travel and less force, while shorter pins will have less travel and more force. To achieve maximum travel at any given height, the bottom diameter of the custom pin should be approximately equal to the C dimension.

Material

Parts Specification
