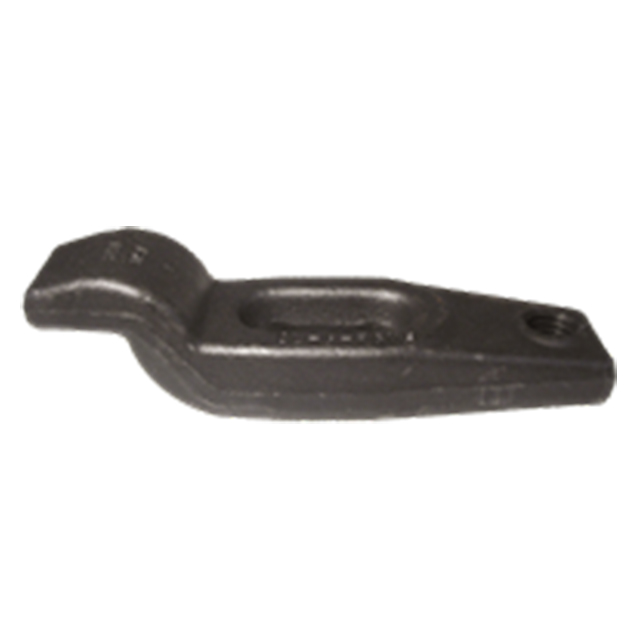

Gooseneck design provides additional machining clearance above the clamp. High-strength Tapped-Heel Clamp Strap, these clamp straps have a tapped heel that accepts an adjustable rear support, such as a Stud leveling Foot.
The locator-nose version is ideal for workpieces with machined sides. The nose's accurately machined locating notch ensures precise, repeatable clamp location with a small contact area for increased machining clearance.
| Material | Heat Treat | Finish | DFARS | RoHS |
| Forged Steel, 70,000 psi yield strength | - | Black Oxide | Yes | Yes |
| Stud Size (Inch) | A | B | C | D | E | F | G | H | J | K | L |
| 3/4-10 | 8 | 3-9/32 | 1-5/8 | 1-9/16 | 2-1/4 | 13/16 | 1 | 1-1/8 | 1-1/8 | 2 | --- |
