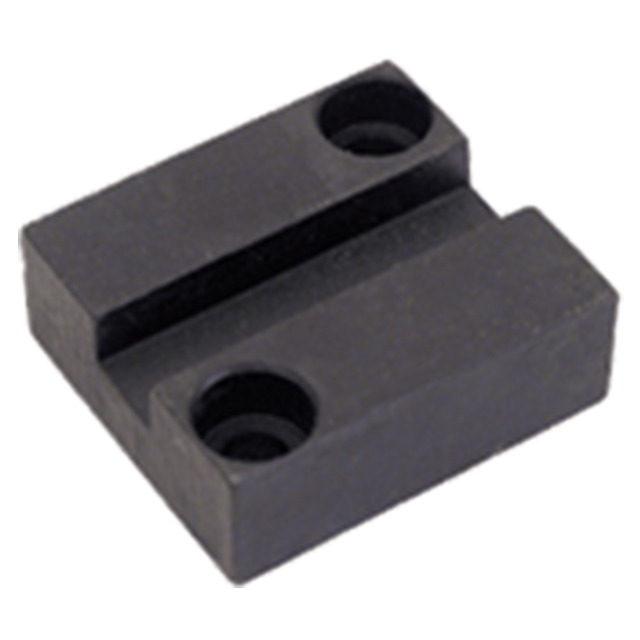

Guide Blocks
Rear-support sliding block for Tapped-Heel Clamp Straps. Guides clamp strap straight back for part loading.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Clamp-strap Stud Size | A | B | C | D | E | F | G Mounting Screws | H | J |
| 5/8-11 or M16 | 0.515 | 0.25 | 5/8 | 1-1/2 | 1/4 | 1-5/8 | 1/4-20 or M6 | 1 | 1-1/8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Size:
5/8-11"
