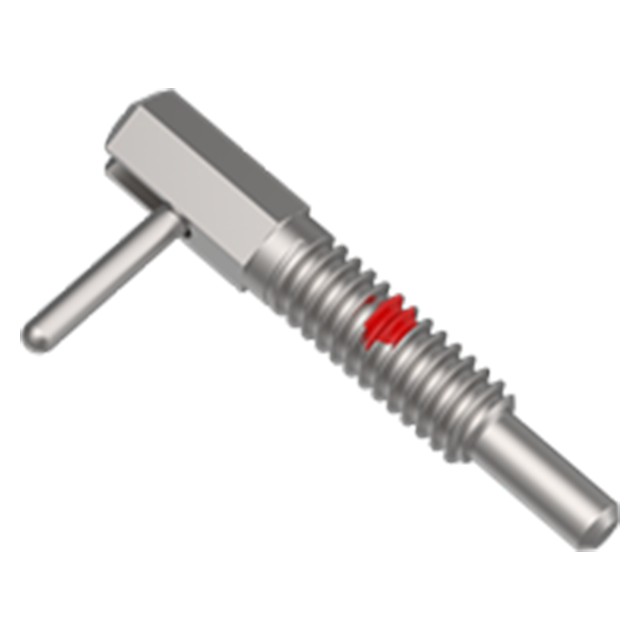

Hand-Retractable Plungers-L Handle, Long Stroke
Long-stroke spring-loaded plunger that locks in retracted position. Convenient L handle for quick retraction and locking. Made in USA.
Operation
Extended
Retracted
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger | 1215 Steel | Carburized-Hardened | Zinc Plated Clear Chromate | Yes | Yes |
| Body and Knurled Head | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
| Spring | 17-7PH Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B Diameter (inch) | C (inch) | D (inch) | E (inch) | G (inch) | H (inch) | J Diameter (inch) |
| 1/2-13 | 1 lbs. | 5 lbs. | 0.312" | 3/4" | 1-1/8" | 2-1/8" | 1/2" | 1-1/4" | 3/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread:
1/2-13"
