Carr Lane CL-85-GCS | Black Oxide Coated Slotted-Heel Gooseneck Clamp Strap

$34.54
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
50016807
UPC:
Weight:
1.88 LBS
Shipping:
Calculated at Checkout
Slotted-Heel Gooseneck Clamp Straps

Gooseneck version of Slotted-Heel Clamp Straps. This design recesses the clamping nut to provide a low overall profile. Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Made in USA.The Slotted-Heel Gooseneck Clamp Straps are for Standard System MF40 (1/2-13 stud size). They can be assembled into a low clamp assembly or a tall clamp assembly by choosing short or long Clamping Studs and Clamp Rests.

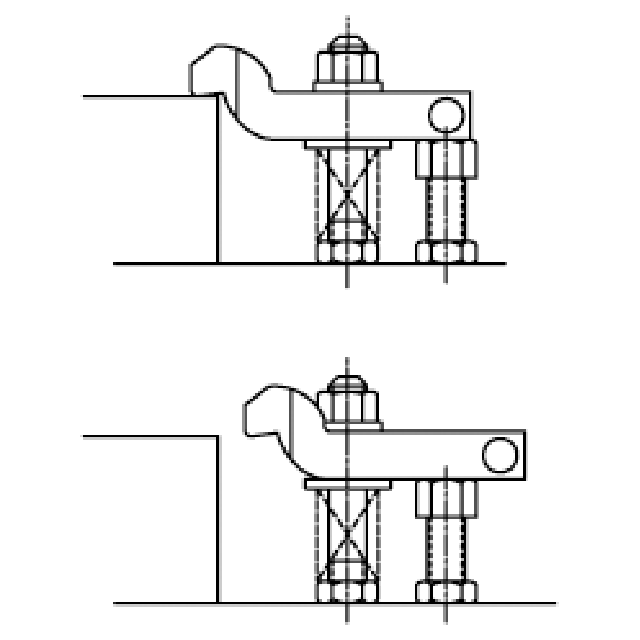

Application Information

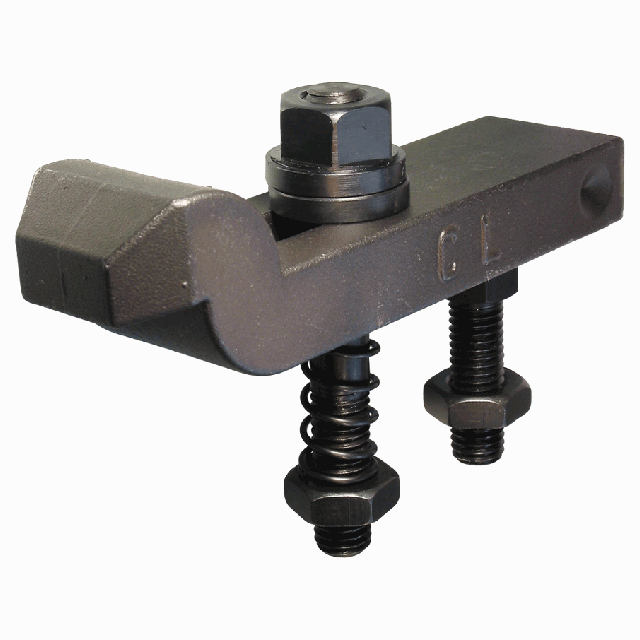

Assembly Components

Slotted-Heel Gooseneck Clamp Strap (two choices)

Spherical Nut & Washer

Clamping Stud (two choices)

Clamp Spring

Flat Washer

Jam Nut

Clamp Rest (two choices)

Material

Material Heat Treat Finish DFARS RoHS
Alloy Steel - Black Oxide

Parts Specification

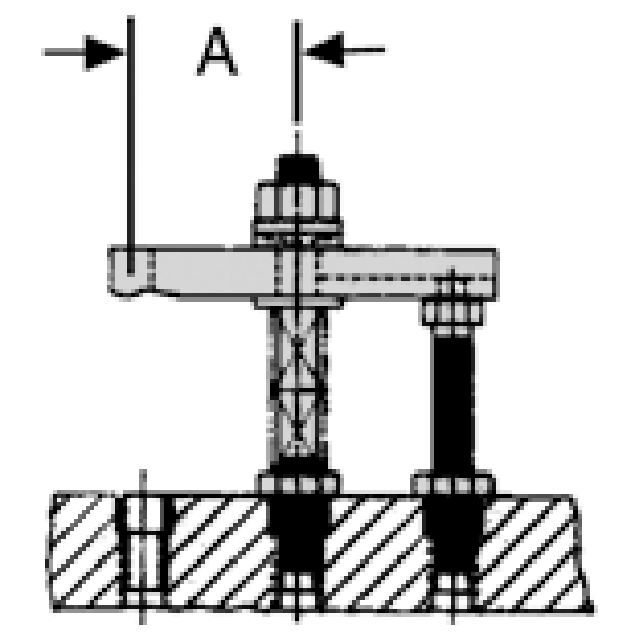

Clamp Strap LengthA
52-3/4
