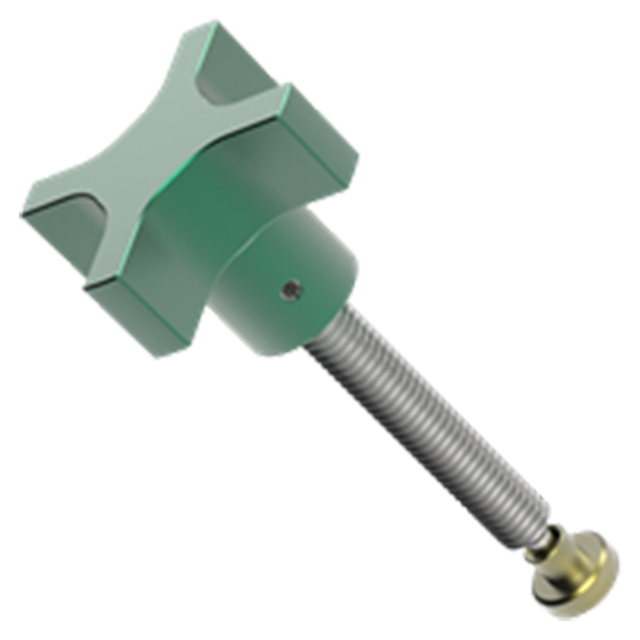

Carr Lane CL-9-KESA | 1/2-13" Thread x 2" Diameter Extruded Hand Knob Swivel Feet

$18.78 $18.22
(You save $0.56)
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
interval quantity:
1
SKU:
50022365
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Extruded Hand Knob Swivel Feet

Extruded Hand knob assembly with a removable swivel foot. Clamping screw is securely pinned in the knob. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Made in the USA.

Material

ItemMaterialHeat TreatFinishDFARSRoHS
KnobExtruded Aluminum-Green AnodizeYesYes
Screw1215 Steel-Zinc Plated Clear ChromateYesYes
Steel Foot1215 Steel-Zinc Plated Clear ChromateYesYes
Delrin FootWhite Delrin 500-YesYesYes

Parts Specification

A ThreadB (Inch)C (Inch)D Diameter (Inch)E Diameter (Inch)FH (Inch)K Diameter (Inch)
1/2-133-9/16"3/16"2"3/4"27/641-3/8"13/16"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
