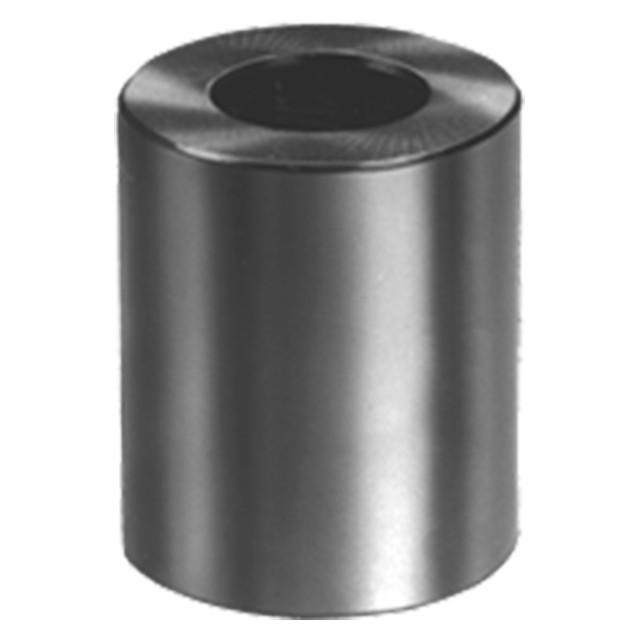

Carr Lane CL-MF50-3103 | Black Oxide Support Cylinder

Support Cylinders

Extremely versatile locator that can be used either as a support or for side location. Precision ground on top, bottom, and outside diameter.

Application Information

With the wide range of available heights, Support Cylinders can be used as both side locators and supports.

Two Support Cylinders can accurately locate alarge diameter, similar to using a V Block.

Mounting

A Multipurpose Extension Support can be used to mount a Support Cylinder anywhere between grid points.

To position between grid points, the Support Cylinder can be mounted on a Multipurpose Extension Support. For additional height, the Support Cylinder can be mounted on a Multipurpose Riser Block.

Material

Material	Heat Treat	Finish	DFARS	RoHS
1045 or 1144 Steel	Heat Treated	Black Oxide	Yes	Yes

Parts Specification

A (Inch)	B Diameter (Inch)	C Diameter (Inch)	D (Inch)
4.0000"	2.0000"	0.6250"	1-1/16"
