Name: Carr Lane CLM-1-DEA-1 | M6 Thread x 1mm Pitch Double-End Clamp Strap
Brand: Carr Lane
SKU: 50022625
Price: 21.81 USD
Availability: InStock

Carr Lane CLM-1-DEA-1 | M6 Thread x 1mm Pitch Double-End Clamp Strap

$21.81

Brand:

Carr Lane

Pitch (Inch):

3/64"

Pitch (Decimal Inch):

0.0394"

Pitch (mm):

1.00mm

Thread:

SKU:

50022625

UPC:

Weight:

0.19 LBS

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

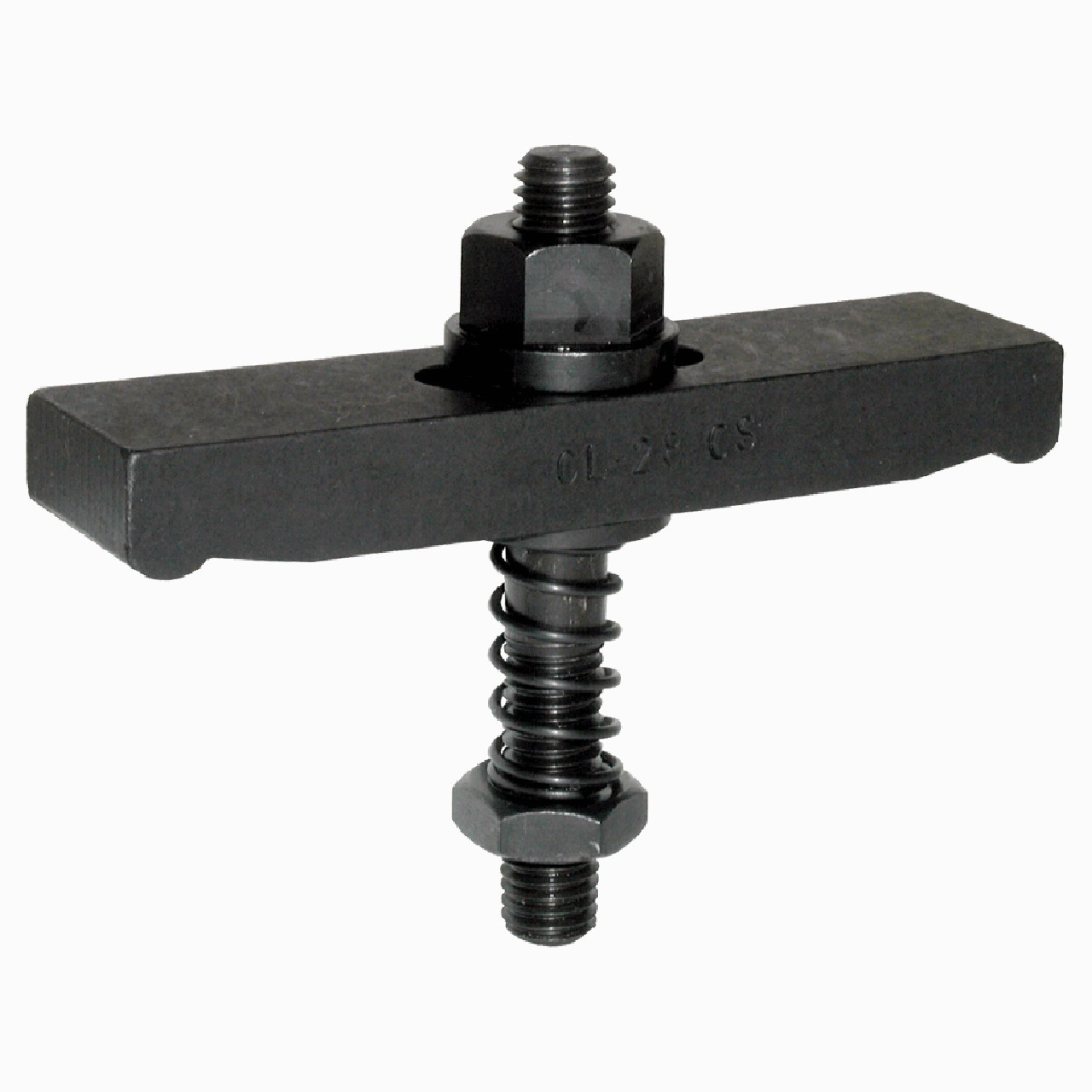

Double-End Clamp Strap Assembly

Heavy-duty steel clamp strap with two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading. Standard radius nose at each end provides firm workpiece contact. Made in USA.

Application Information

Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.

Assembly with Spherical Nut & Washer (-1)

This clamp assembly includes a Double-End Clamp Strap plus the following Items:

Spherical Nut and Washer

Clamping Stud

Clamp Spring

Flat Washer

Jam Nut

Material

Material	Heat Treat	Finish	RoHS	RoHS
1018 Steel	Carburized Hardened	Black Oxide	✔	✔

Parts Specification

Thread Size	Thread Pitch (mm)	A (mm)	B (mm)	C (mm)
M6	1mm	63.5mm	16mm	9.5mm
