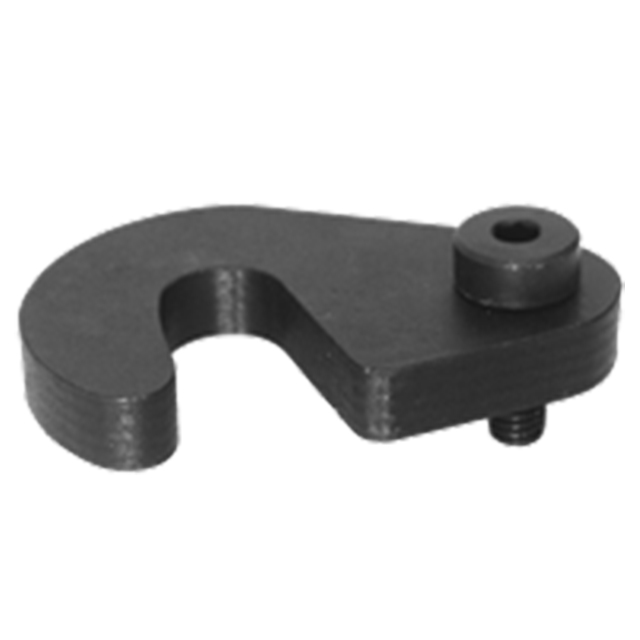

Swing C Washers
Permanently attached C washer that swings out of the way for clear loading. Can be reversed to swing into position either clockwise or counterclockwise.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Washer | 1018 Steel | Carburized-hardened | Black Oxide | Yes | Yes |
| Shoulder Screw | Alloy Steel | Heat Treated Rx 32-43 | Black Oxide | Yes | Yes |
Parts Specification
| Stud Size | A (mm) | B (mm) | C (mm) | D (mm) | E Diameter (mm) | G Diameter (mm) | H Thread | Thread Pitch (mm) |
| M10 | 19mm | 9.5mm | 25.5mm | 6mm | 12mm | 10mm | M8 | 1.25mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
