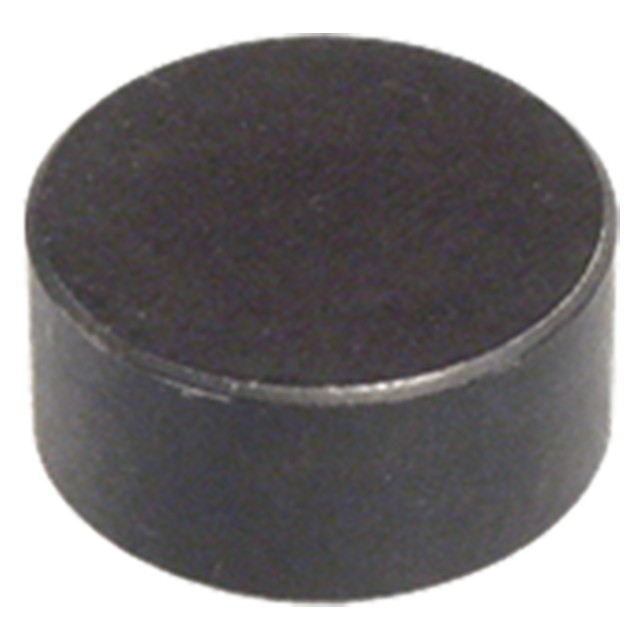

Round Grippers
Flat are hard, replaceable inserts used to provide additional wear resistance when installed in a fixture. The hardened steel grippers shown here are the most economical and impact resistant. Made in USA.
Installation
These tapped Round Grippers can be fastened from behind with a socket-head cap screw. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. Tapped Round Grippers can also be installed in Gripper Swivel Pads and Gripper Swivel Contact Bolts.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 8620 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| A Diameter (mm) | B (mm) | C Thread | Thread Pitch (mm) | D (mm) |
| 12mm | 10mm | M5 | 0.8mm | 5mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
