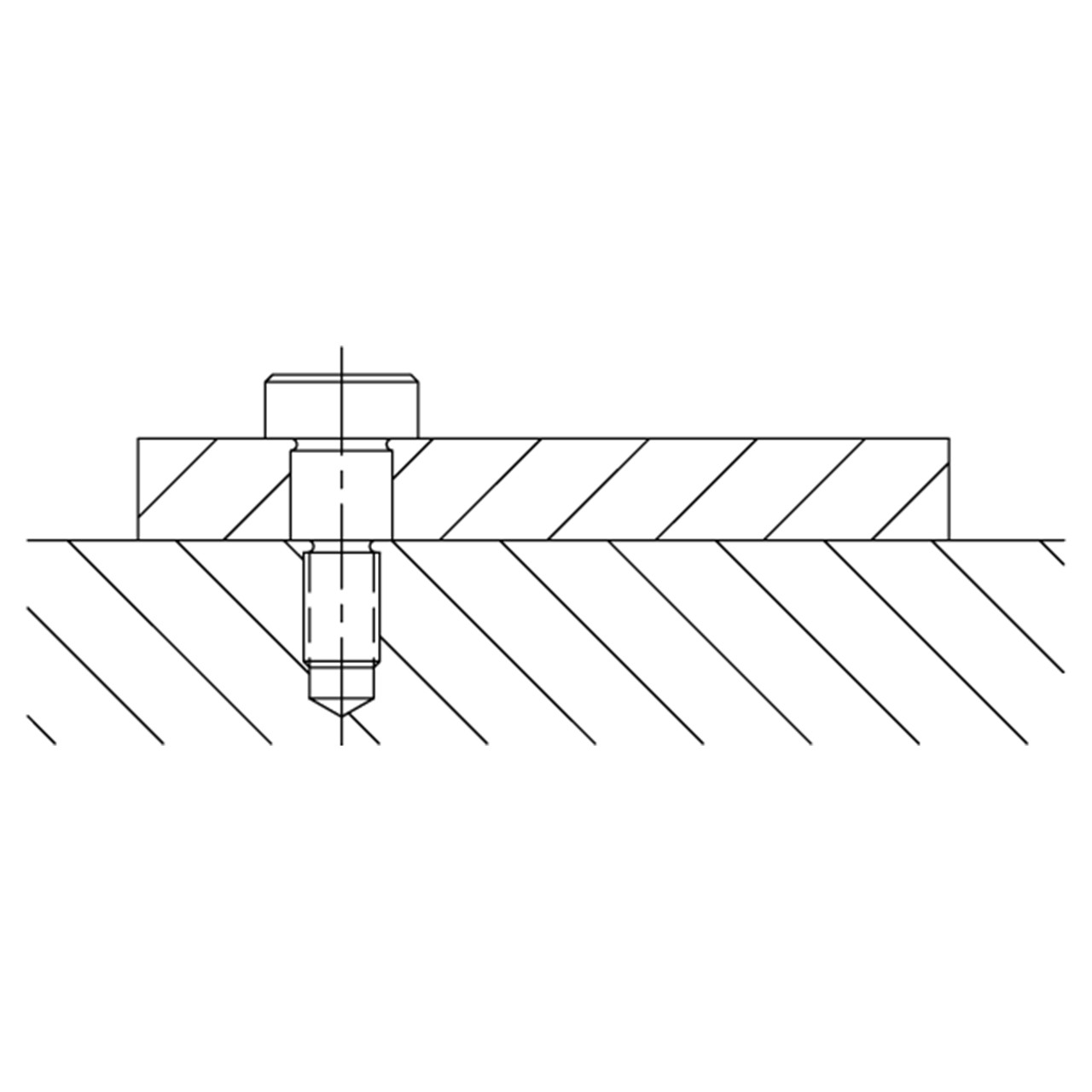

Precision close-tolerance Shoulder Screw. The shoulder Diametermeter is ground to a closer tolerance than ordinary stripper bolts, for better bearing action. Shoulder length is held to a plus tolerance to allow a nominal-size plate to swing freely underneath the head.
| Material | Heat Treat | Finish | DFARS | RoHS |
| Alloy Steel | Heat Treated Rc 32-43 | Black Oxide | Metric | ✔ |

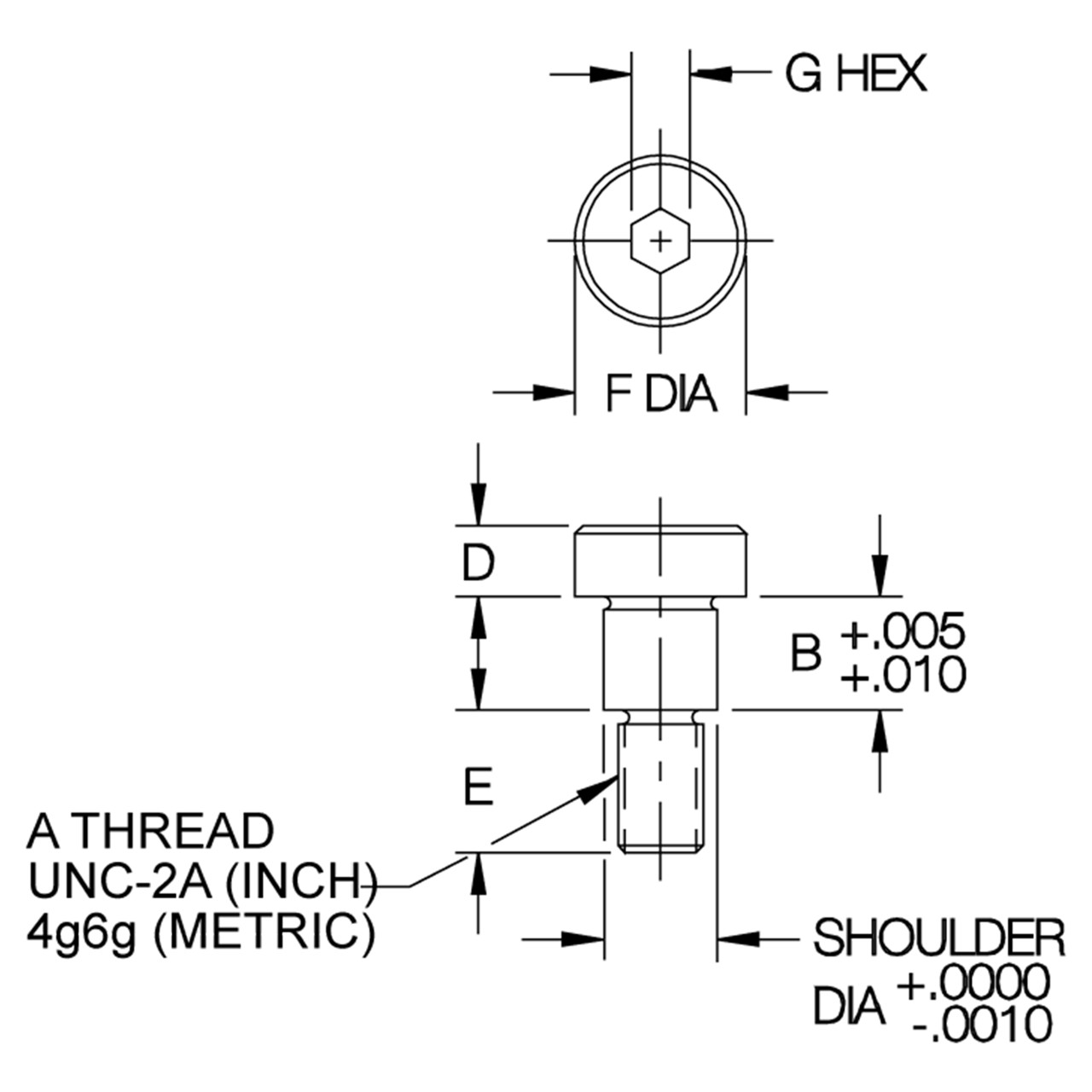

| Shoulder Diameter (mm) | A Thread | Thread Pitch (mm) | B (mm) | D (mm) | E (mm) | F Diameter (mm) | G (mm) |
| 20mm | M16 | 2mm | 16mm | 14mm | 22.5mm | 30mm | 10mm |
