Carr Lane CLM-3-SWA-1 | M16 Thread x 2mm Pitch Swing Clamp Assembly

$120.62
Brand:
Carr Lane
Pitch (Inch):
5/64"
Pitch (Decimal Inch):
0.0787"
Pitch (mm):
2.00mm
Thread:
M16
SKU:
50016027
UPC:
Weight:
3.59 LBS
Shipping:
Free Shipping

Swing Clamp Assembly

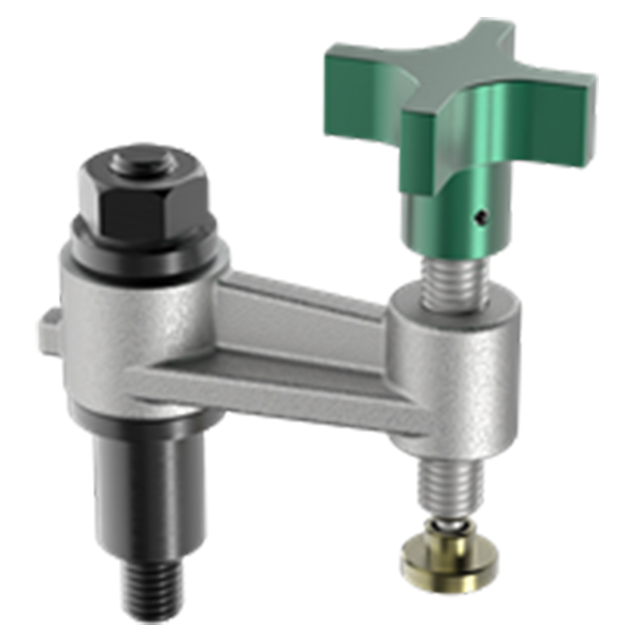

Long-reach swing clamp that can be hand tightened for medium clamping force. This post-mounted version is ideal for tight spaces, with a long mounting post for increased strength. Install in a reamed hole.

Application Information

Swivel Foot

Swing Clamp Assemblies use patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental back out during use.

Material

ItemMaterialHeat TreatFinishDFARSRoHS
Swing ArmNodular iron per ASTM A536 grade 65-45-12-Zinc Plated Clear ChromateYesYes
Post and Flange BaseMild Steel-Black OxideYesYes

Parts Specification

D Thread SizeThread Pitch (mm)A (mm)B (mm)C Diameter (mm)E (mm)F (mm)G (mm)H Diameter (mm)J (mm)K (mm)L (mm)N (mm)Q ThreadS (mm)U Diameter (mm)V Diameter (mm)W (mm)Y (mm)Z (mm)
M162mm102mm39.5mm28mm45.5mm33.5mm122.5mm24mm70mm5.5mm22.5mm39.5mm5/8-115.5mm33.5mm44.5mm38mm2.5mm17mm
