Forged Adjustable Drill-Press Clamps
Handy hold-down clamp assembly that includes a Forged Adjustable Clamp, ideal for clamping on slotted drill-press tables and tapped drill-jig plates. This rugged forged steel pivot clamp provides instant height adjustment without blocks or shims.

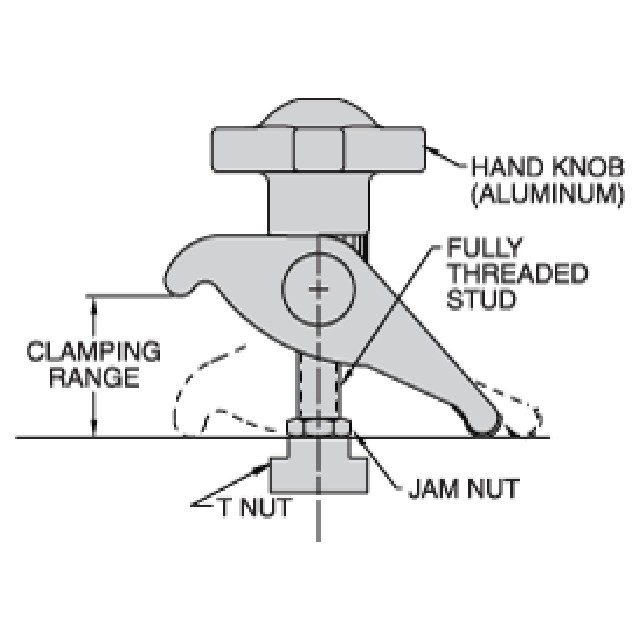

Application Information
Material
| Item | Material | Heat Treat | Finish | RoHS | RoHS |
| Clamp Body | Forged 1045 Steel | - | Black Oxide | ✔ | ✔ |
| Clamp Pivot | Mild Steel | - | Black Oxide | ✔ | ✔ |
| Removable Heel Pad | Brass | - | - | ✔ | ✔ |
Parts Specification

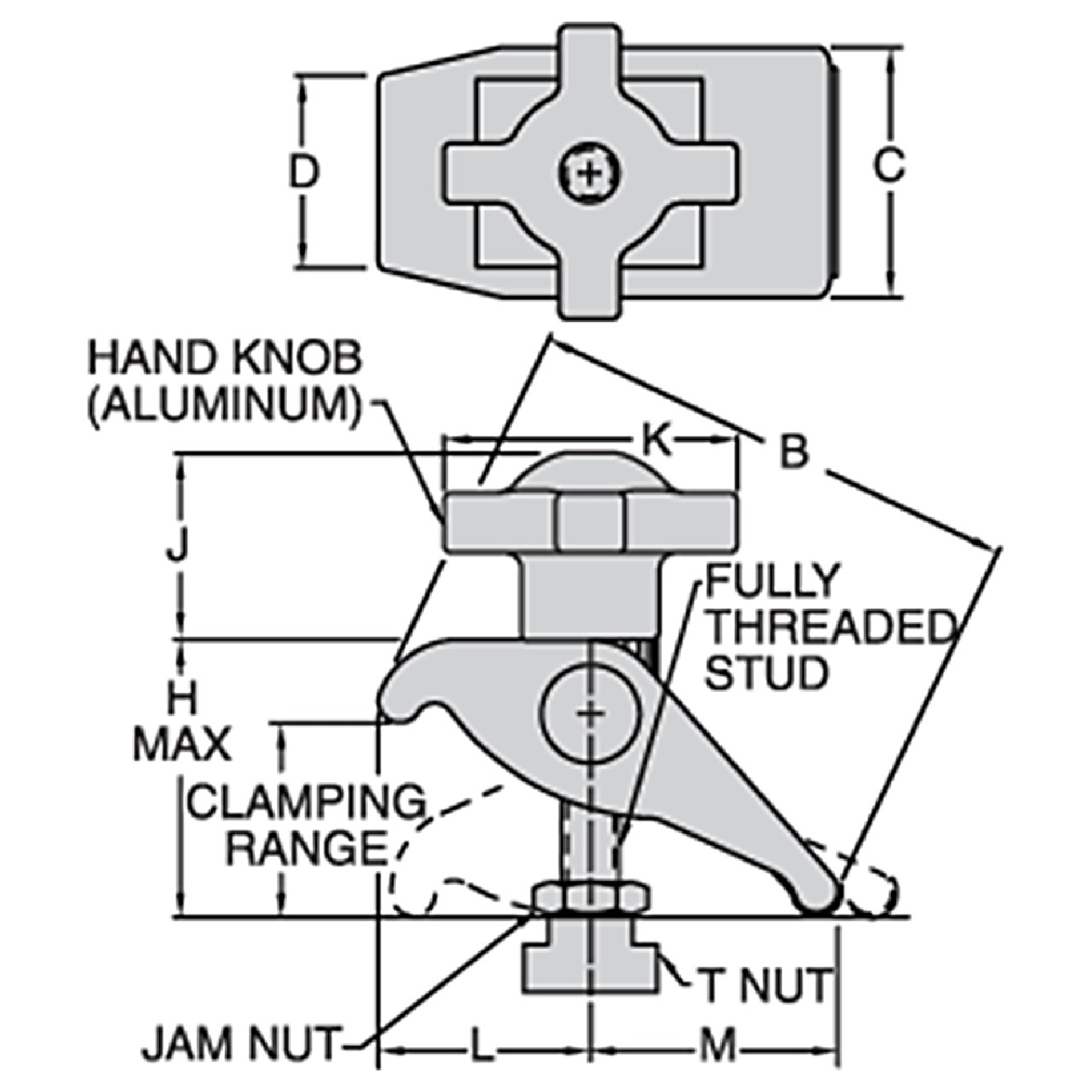

| Stud Size | Thread Pitch (mm) | Table Slot Size | T Nut (Included) | Forged Adjustable Clamp (Included) | Fully Threaded Stud (Included) | Hand Knob (Included) | Jam Nut (Included) |
| M10 | 1.5mm | Tapped M10 | None | CL-6-FAC | CLM-10x80-FTS | CLM-3-HK-4A | CLM-10-JN |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
