Hand-Retractable Plungers-Knob Handle

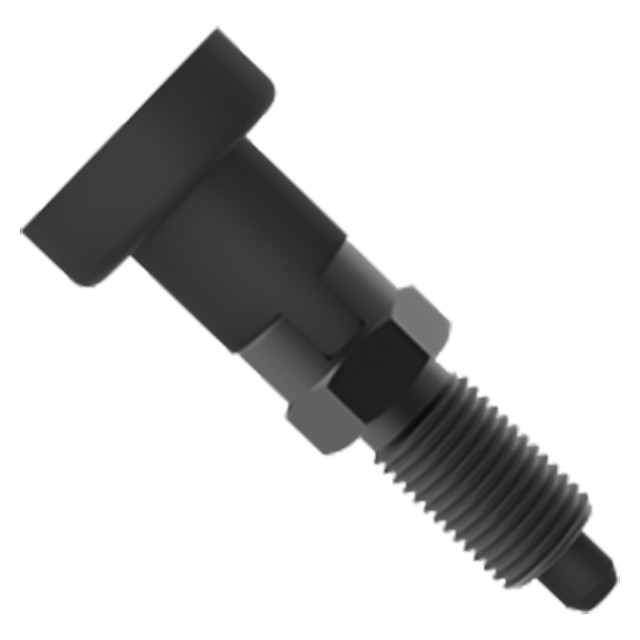

Precision indexing plunger with a attractive knob handle for convenient retraction. Threaded-body version allows adjustment and can be secured with an optional Jam Nut. Provides high strength and durability in an extremely compact assembly. Hardened and ground plunger. Tip has a slight taper for easy alignment.
The locking type has a spring-loaded plunger that locks in retracted position. To lock, pull the knurled knob back and turn 90°. Body is notched at 90° to keep the knob in its retracted position.
Material
| STEEL | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Knob | Matte black fiber-reinforced nylon thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 230°F) | - | - | Yes | Yes |
| Plunger | Steel | Heat Treated | - | Yes | Yes |
| Body | Steel | - | Black Oxide | Yes | Yes |
| Jam Nut | Mild Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B Diameter Nominal (mm) | B Diameter Actual (mm) | C (mm) | D (mm) | E (mm) | F Diameter (inch) | G (mm) | J (mm) | L (mm) | Initial End Force (lbs) | Final End Force (lbs) |
| M10 | 1 mm | 5 mm | 4.98/4.96 mm | 5 mm | 17 mm | 15 mm | 21" | 5 mm | 12 mm | 46 mm | 1.6 lbs. | 3.8 lbs. |
