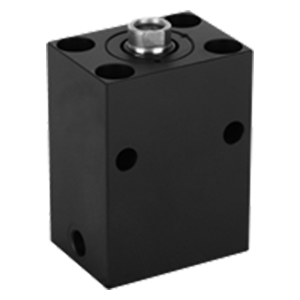

Carr Lane CLR-1517-005 | M27 x 40 Thread Size x 125.00mm Width x 95.00mm Depth x 116.00mm Height Short Stroke Block Cylinder

$815.02
Brand:
Carr Lane
Width (mm):
125.00mm
Depth (mm):
95.00mm
Height (mm):
116.00mm
interval quantity:
1
SKU:
50024715
UPC:
Weight:
17.11 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Carr Lane CLR-1517-005 | M27 x 40 Thread Size x 125.00mm Width x 95.00mm Depth x 116.00mm Height Short Stroke Block Cylinder

Product Information

7250 psi max Single Acting Compact design with many applications. Easy to mount on flat surfaces, horizontally or vertically. Excellent for punching, pressing, and assembly operations, with very high forces available. Available in six inch sizes and eight metric sizes, with a choice of stroke length. Push force at 7250 psi: 2250 Lbs 5500 Lbs 9000 Lbs 14100 Lbs 22100 Lbs 35100 Lbs 56600 Lbs 88100 Lbs .

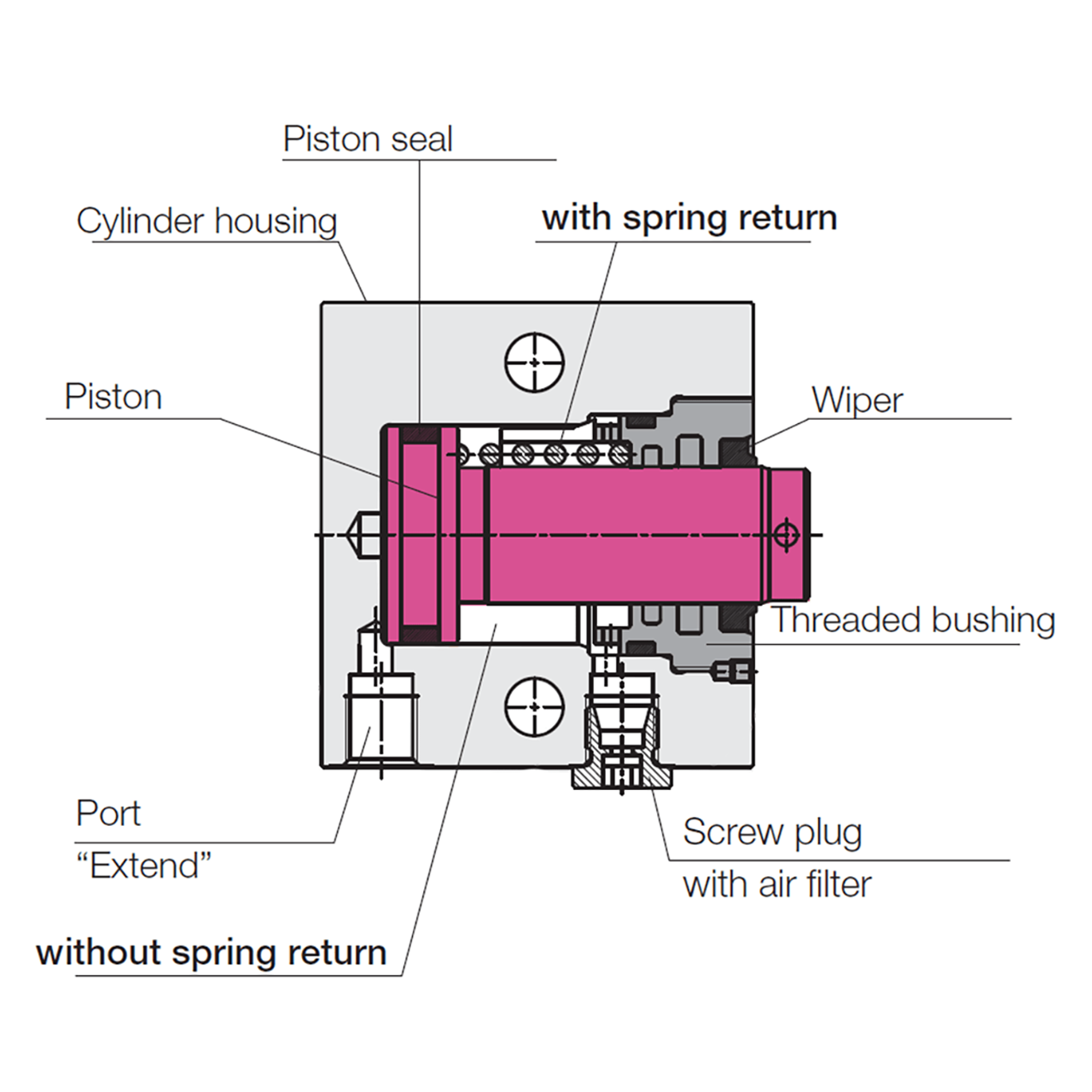

Clamping Action

Applying fluid pressure to the A port advances the plunger. Spring return.

Optional Viton Seals

For high-temperature applications (212° to 300° F), we offer Viton seals in all sizes. Viton seals have a slightly shorter service life.


Material Specifications
ItemMaterialHead TreadStud
PlungerSteelCase Hardened-
BodySteel-Black Oxide

Product Specifications
Manufacturer Part NumberCLR-1517-005
Thread SizeM27 x 40
Width (mm)125.00mm
Depth (mm)95.00mm
Height (mm)116.00mm
Product TypeShort Stroke Block Cylinder
