Carr Lane HM-30-20-20.00 | 30mm OD x 20mm Length Quick-Ship Head Press-Fit Bushing

$24.96
Ships:
From Manufacturer
Brand:
Carr Lane
Diameter:
30mm
Overall Length:
20mm
Ships:
From Manufacturer
SKU:
70024668
UPC:
Weight:
0.16 LBS
Shipping:
Calculated at Checkout

Quick-Ship Head Press-Fit Bushings-Metric (HM)

Metric version of the popular H bushing. HM bushings are permanently pressed into the jig plate. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. The head can be left exposed, or recessed by counterboring the installation hole.

Application Information

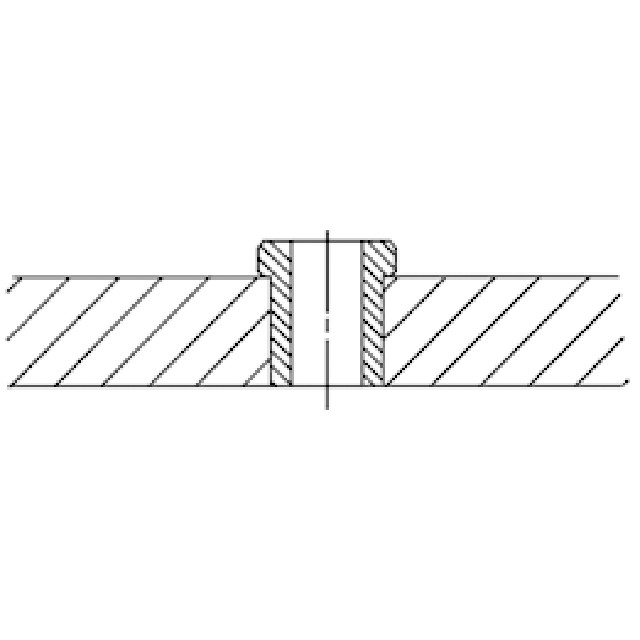

HM bushings are permanently pressed into the jig plate. The head can be left exposed, or recessed by counterboring the installation hole.

ID Tolerance

Standard ID Tolerance (G6):

Over 18 to 30mm +0.007/+0.020mm

OD Tolerance

Standard OD Tolerance (s6):

22 to 30mm +0.048/+0.035

Material

Material Heat Treat Finish DFARS RoHS
1144 or 52100 steel Heat Treated to achieve Rc 62-64 ID Hardness - - Yes

Parts Specification

ID (mm)OD (mm)Length (mm)F Diameter (mm)G (mm)
20.00mm30mm20mm34mm5mm

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Carr Lane
Diameter:
30mm
Overall Length:
20mm
Ships:
From Manufacturer
