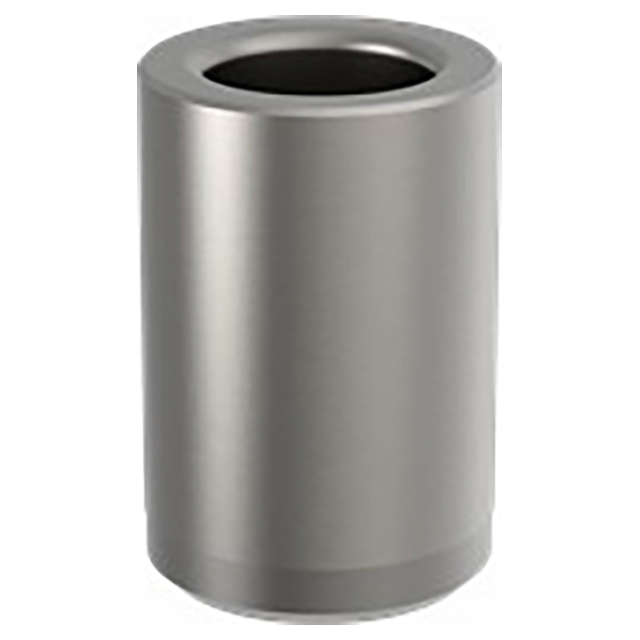

Quick-Ship Press-Fit Bushings-Metric

Metric version of our popular P bushing. PM bushings are permanently pressed into the jig plate, usually flush with the top surface. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. PM bushings can be mounted closer together than headed bushings, but offer less resistance to heavy axial loads.

Application Information

PM bushings are permanently pressed into the jig plate, usually flush with the top surface.

ID Tolerance

Standard ID Tolerance (G6):

From .35 to 3mm +0.002/+0.008mm

Over 3 to 6mm +0.004/+0.012mm

Over 6 to 10mm +0.005/+0.014mm

Over 10 to 18mm +0.006/+0.017mm

Over 18 to 30mm +0.007/+0.020mm

Over 30 to 50mm +0.009/+0.025mm

OD Tolerance

Standard OD Tolerance (s6):

4 to 6mm +0.027/+0.019

7 to 10mm +0.032/+0.023

12 to 18mm +0.039/+0.028

22 to 30mm +0.048/+0.035

35 to 48mm +0.059/+0.043

55 to 62mm +0.072/+0.053

Material

Parts Specification
