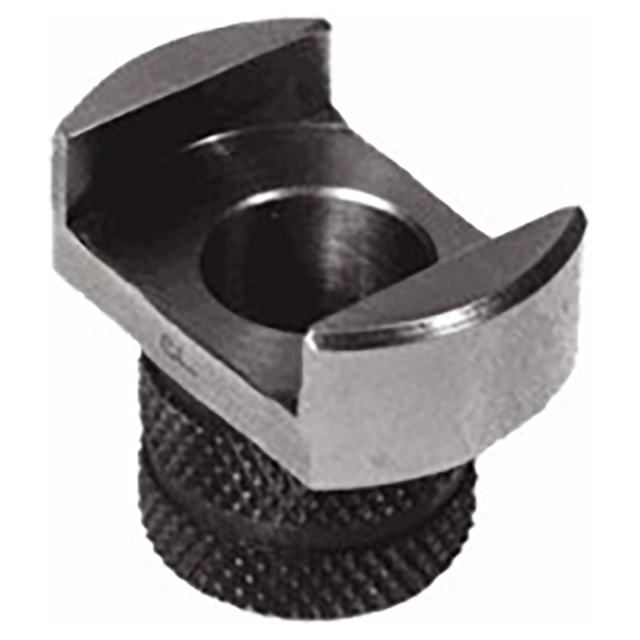

Taper-Lok Liners-Knurled
Precision knurled liner bushing for mounting air-feed drills in fiberglass or plastic tooling. One-piece design has two angled locking surfaces to lock the drill motor in place, for superior strength. Optional heavy-duty type has precisely machined helical locking surfaces that mate exactly with the air-feed collar, for added impact resistance. Milled flats allow close hole spacing.
Application Information
Material
Parts Specification
| A Diameter (Inch) | B Diameter (Inch) | D (Inch) | F Diameter (Inch) | G (Inch) | H (Inch) | L (Inch) | Matching Adaptor Tip |
| 0.7500 .7505" | 1-1/8" | 7/8" | 1-13/16" | 1.218" | 1-1/8" | 1-1/8" | A-22508 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
