Colton Cutting Tools 61502 | Carbide End Mill 4 Flute Ball End Standard CCT-1 Coated 1/8" Diameter x 1/2" LOC x 1 1/2" OAL

Made in the USA

Colton Cutting Tools carbide end mills are 100% manufactured in the USA by an ISO-certified facility, using premium grinding wheels and the finest grades of carbide found in the industry.

Attentiveness to edge prep, polishing, and post-production inspection yield pristine geometry and tight tolerances. Colton customers can depend on consistent performance that will reduce machining time, increase part count, and generate tremendous cost savings over the competition.

Advanced CCT-1 Coating

Colton carbide end mills offer an advanced CCT-1 coating. These coated end mills are often used when little or no coolant is being used, due to their unique ability to better handle high heat.

CCT-1 is a premier high performance coating targeting your toughest applications. Whether you are cutting cold roll steel or the most advanced aerospace alloys, CCT-1 will help you get the job done.

This proprietary blend of ingredients is designed to give you better performance in all cutting applications. High hardness, high elasticity, low friction coating excels in stainless steels and other high nickel-based alloys. Whether you are roughing or finishing, CCT-1 is up to the task.

Why choose Colton Cutting Tools with CCT-1

Save money on high-performance tooling, while still retaining the benefits of a high-performance coating. CCT-1 coated tools deliver incredible value and consistent performance.

Variety of end and length options

Offered in both ball and square end options, as well as stub, standard, and long lengths.

• CNC ground in the USA
• Premium Sub-Micrograin Solid Carbide
• Engineered for high performance in aluminum, plastic, and easier to machine materials or where 2 flutes is preferred
• Cutter diameter tolerance: +0.0000"/-0.002"

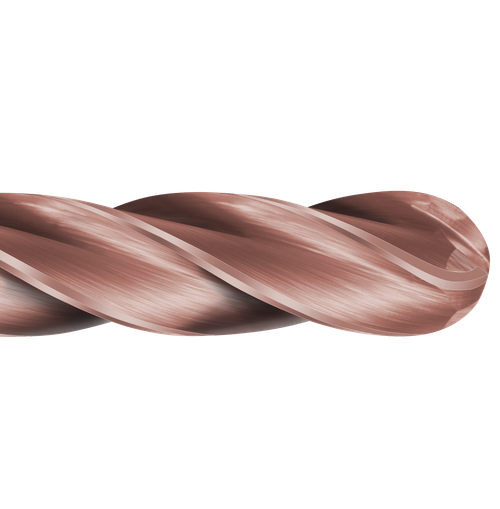

• 30 Degree Helix, 4 Flutes, Ball End, Standard Length
• h6 Shank tolerance for use with shrink-fit and other high performance tool holders
• Number of flutes: 4
• Finish / Coating: CCT-1
• Mill Diameter (inch): 1/8"
• Length of cut (inch): 1/2"
• Overall Length (inch): 1-1/2"
• Shank Diameter: 1/8"
