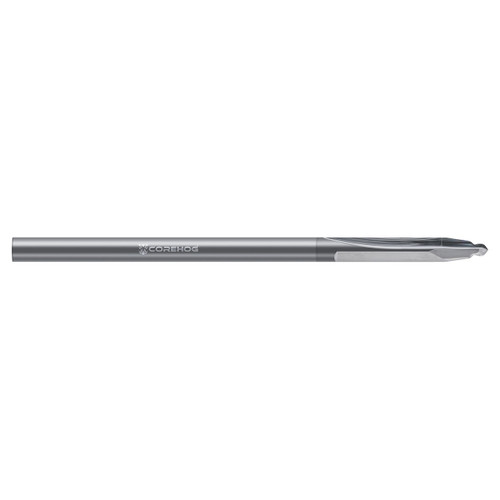

This fully stocked selection of CoreHog CFRP drills, featuring specially engineered geometry that provides outstanding tool life, finish, and repeatability, delivers unmatched results in CFRP holemaking operations.
Features:
Features- Provides superior results in CFRP while delivering excellent performance in other laminate and stack composite materials
- Designed with high strength and rigidity while maintaining tight tolerance
- For use in both hand and CNC drilling operations
- Solid carbide
- Precision manufactured in the USA
Product Specifications
Manufacturer Part Number | C37475 |
Drill Diameter (Inch) | 0.2188" (7/32) |
Flute Length (Inch) | 1.0000" (1) |
Shank Diameter (Inch) | 0.2188" (7/32) |
Overall Length (Inch) | 6.000" (6) |
Size | 7/32 |
Assembly Size Pairing | 7/32 |
Metric | N |
Coating | Uncoated |
Substrate | Solid Carbide |
Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
CoreHog
Flute Length (Inch):
1"
Flute Length (Decimal Inch):
1.0000"
Flute Length (mm):
25.40mm
Shank Diameter (Inch):
7/32"
Shank Diameter (Decimal Inch):
0.2188"
Shank Diameter (mm):
5.56mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Finish/Coating:
Uncoated
