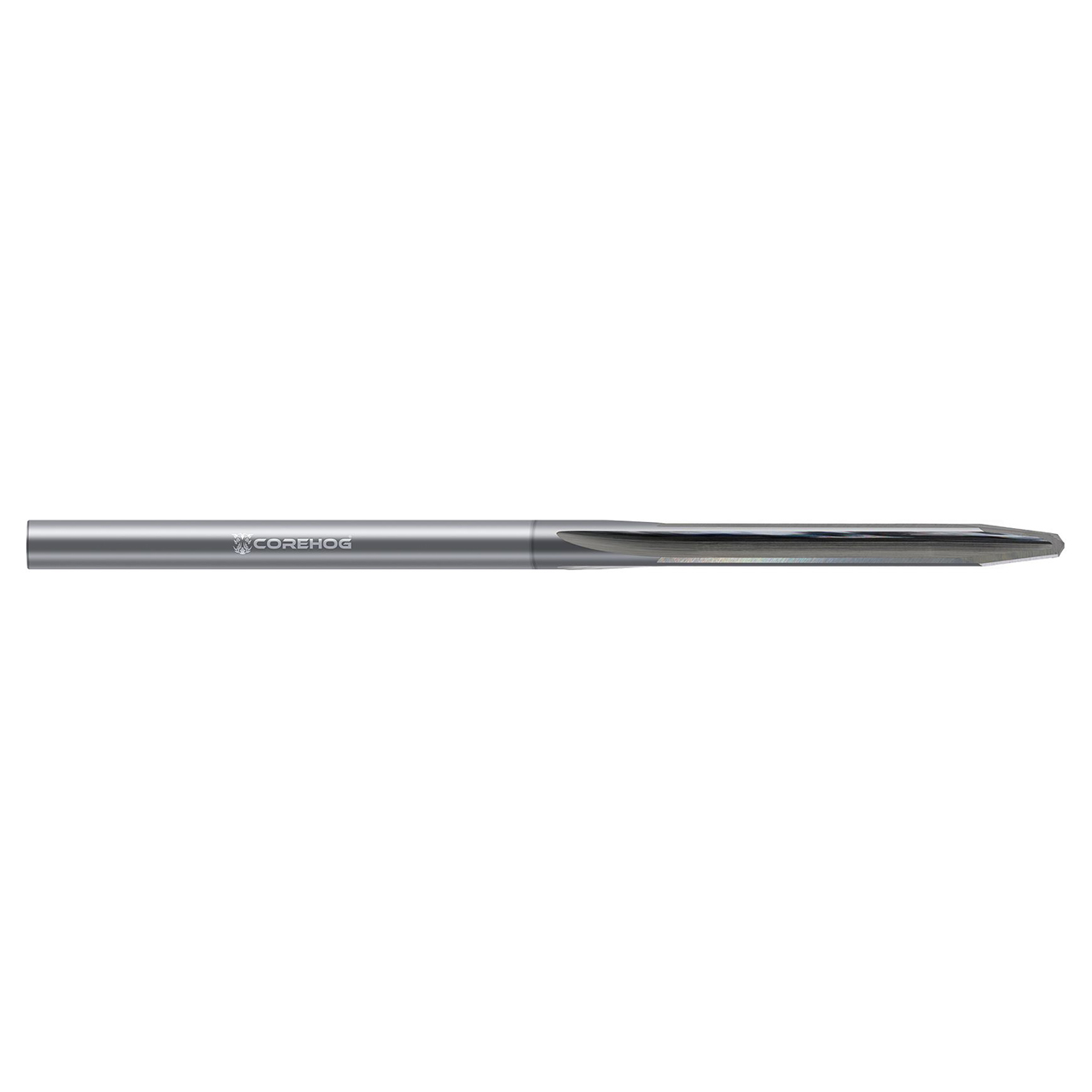

CoreHog C54150 | 0.2188" (7/32) Drill Diameter x 0.2188" (7/32) Shank x 1.5000" (1-1/2) Flute Length 4 Flute Uncoated Solid Carbide Tapered Drill Reamer

$60.60
Brand:
CoreHog
Flute Length (Inch):
1-1/2"
Flute Length (Decimal Inch):
1.5000"
Flute Length (mm):
38.10mm
Shank Diameter (Inch):
7/32"
Shank Diameter (Decimal Inch):
0.2188"
Shank Diameter (mm):
5.56mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Number of Flutes:
4
Finish/Coating:
Uncoated
SKU:
10245257
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Tapered Drill Reamers, engineered to produce tight tolerance holes in composite laminates, are suitable for use in a wide range of composites and plastics and can be used to drill and ream in a single operation.

Features:

Features
  • 4 flute design and special "long nose" geometry greatly reduces delamination by avoiding grabbing or pushing on plies
  • For use in both hand and CNC operations
  • DLC coating for improved lubricity and wear resistance
  • True crystalline CVD diamond coating for drastically improved hardness for outstanding abrasion resistance and higher feed rates
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberC54150
Drill Diameter (Inch)0.2188" (7/32)
Flute Length (Inch)1.5000" (1-1/2)
Shank Diameter (Inch)0.2188" (7/32)
Overall Length (Inch)4.000" (4)
Size7/32
Assembly Size Pairing7/32
MetricN
CoatingUncoated
SubstrateSolid Carbide
Number of Flutes4

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
